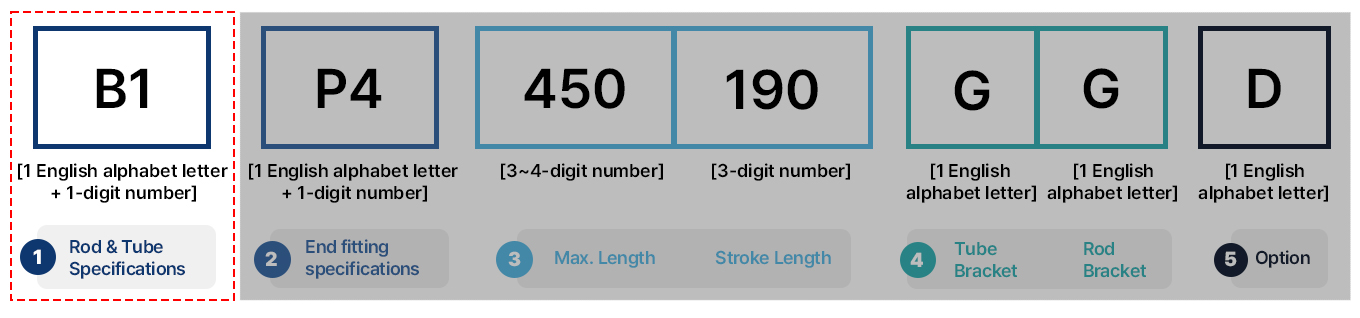

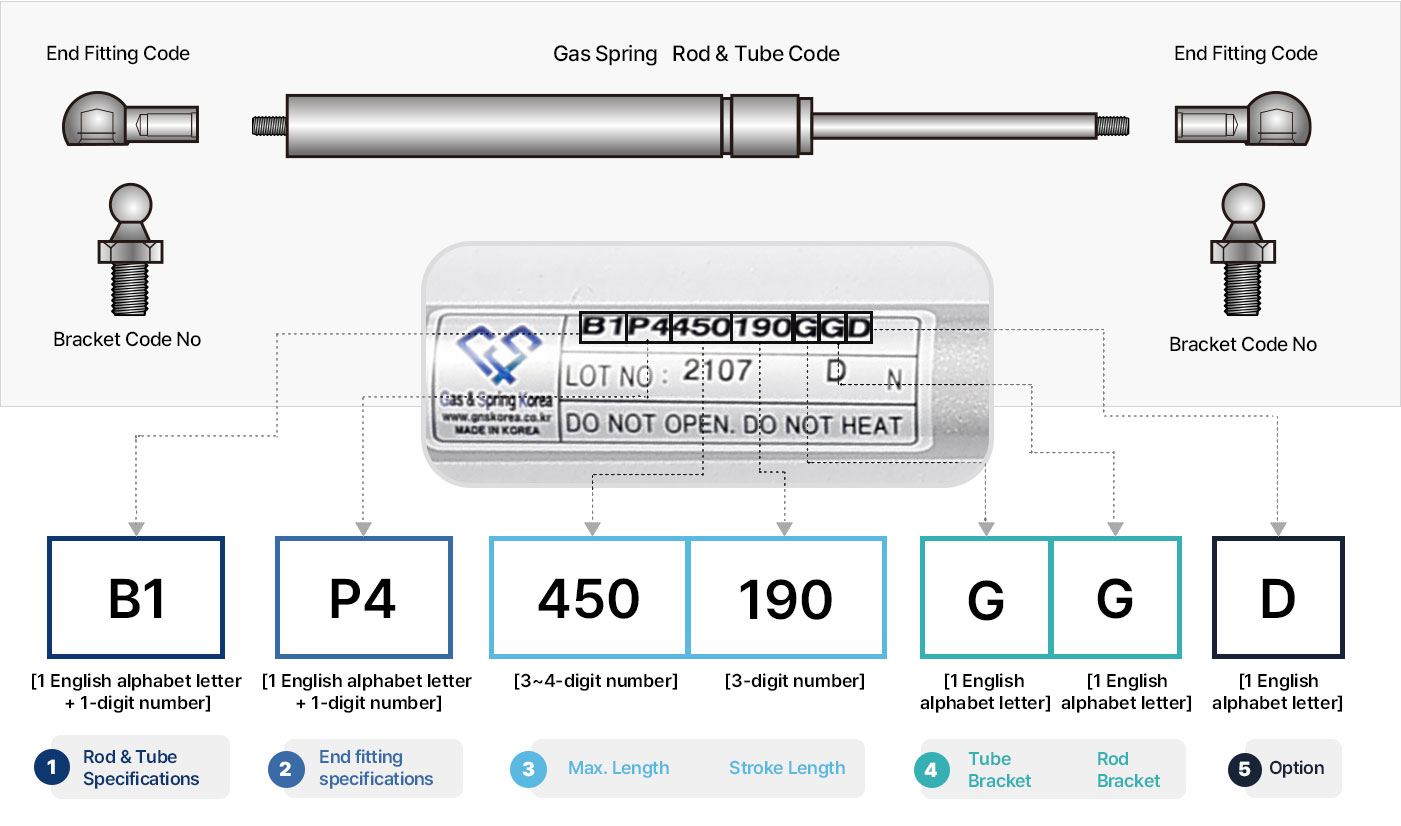

Check Rod and Tube on the code table page whichare the first code.
| Code No. | Rod Dia | Tube Dia | Rod Mt | Tube Mt |
|---|---|---|---|---|
| A1 | 6 | 15 | S20-C | STKM11A |
| A3 | 6 | 15 | SUS316L | STKM11A |
| A4 | 6 | 15 | SUS316L | SUS316L |
| B1 | 8 | 18 | S20-C | STKM11A |
| B3 | 8 | 18 | SUS316L | STKM11A |
| B4 | 8 | 18 | SUS316L | SUS316L |
| C1 | 10 | 22 | S20-C | STKM11A |
| C3 | 10 | 22 | SUS316L | STKM11A |
| C4 | 10 | 22 | SUS316L | SUS316L |
| D1 | 12.5 | 27.4 | S20-C | STKM11A |
| D3 | 12.5 | 27.4 | SUS316L | STKM11A |
| D4 | 12.5 | 27 | SUS316L | SUS316L |
| E1 | 14 | 27.4 | S20-C | STKM11A |
| E3 | 14 | 27.4 | SUS316L | STKM11A |
| E4 | 14 | 27 | SUS316L | SUS316L |

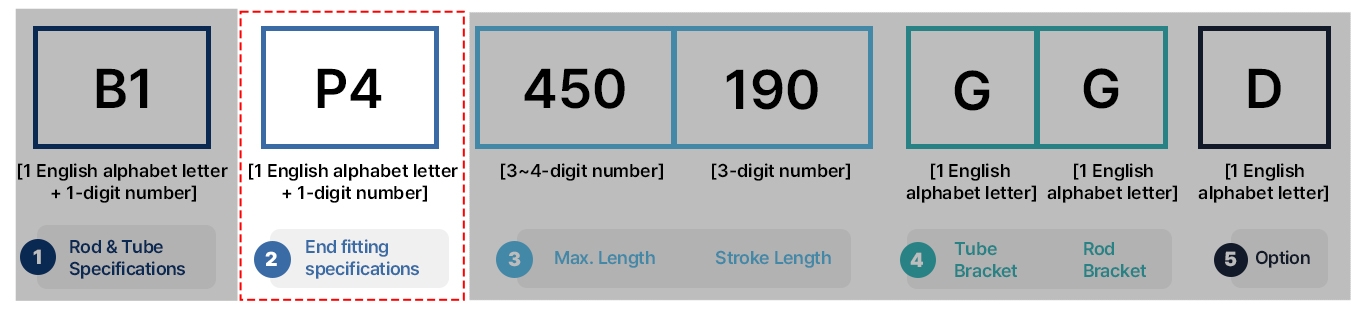

Check the end fitting code.
(Models with only tap work done and no end fittings have no code for this part. )
| Code No. | Photo | End Fitting | Material | Thread |
|---|---|---|---|---|
| P1 |
|
Gray Injection Hinge | Plastic | M6*1.0 |
| P2 |
|
Black Injection hinge | Plastic | M6*1.0 |
| P3 |
|
Black Injection hinge | Plastic Insert | M6*1.0 |
| P4 |
|
Gray Injection hinge | Plastic Insert | M6*1.0 |
| P5 |
|
Black Injection hinge (Small) | Plastic | M6*1.0 |
| P6 |
|
Gray Injection hinge (Small) | Plastic | M6*1.0 |
| M1 |
|
10M-Metal hinge | S20C | M6*1.0 |
| M2 |
|
10M-Metal hinge | S20C | M8*1.25 |
| M3 |
|
10M-Metal hinge(Safety Clip) | S20C | M6*1.0 |
| M4 |
|
10M-Metal hinge(Safety Clip) | SUS303 | M6*1.0 |
| M5 |
|
10M-Metal hinge(Safety Clip) | S20C | M8*1.25 |
| M6 |
|
10M-Metal hinge(Safety Clip) | SUS303 | M8*1.25 |
| M7 |
|
13M-Metal hinge(Safety Clip) | S20C | M8*1.25 |
| M8 |
|
13M-Metal hinge(Safety Clip) | SUS303 | M8*1.25 |
| M9 |
|
16M-Metal hinge(Safety Clip) | S20C | M10*1.5 |
| N1 |
|
Cutter hinge | S20C | M6*1.0 |
| N2 |
|
Cutter hinge | S20C | M6*1.0*5T |
| N3 |
|
Cutter hinge | S20C | M8*1.25 |
| N4 |
|
Cutter hinge | SUS304 | M6*1.0 |
| N5 |
|
Cutter hinge | S20C | M8*1.25*5T |
| N6 |
|
Cutter hinge | SUS304 | M8*1.25 |
| N7 |
|
Cutter hinge | SUS304 | M6*1.0*5T |
| N8 |
|
Cutter hinge | SUS304 | M8*1.25*5T |
| K1 |
|
I-RINK | SPCC | 3.2t*ø6*12 |
| K2 |
|
I-RINK | SPCC | 3.2t*ø8*18 |
| K3 |
|
I-RINK | SPCC | 5t*ø8*17 |
| K4 |
|
I-RINK | SUS304 | 5t*ø8*17 |
| K5 |
|
I-RINK | SPCC | 3.2t*ø10*18 |
| K6 |
|
I-RINK | SPCC | 5t*ø10*17 |
| K7 |
|
I-RINK | SUS304 | 3.2t*ø8*18 |
| L1 |
|
L1-RINK | SPCC | 3.2t*ø13*24 |
| L2 |
|
L2-RINK | SPCC | 3.2t*ø13*25 |
| L4 |
|
L4-RINK | SPCC | 3.2t*ø8*18 |
| L5 |
|
L5-RINK | SPCC | 3.2t*ø10*25 |
| F1 |
|
Freelock Link | S20C | 10t*ø8.1*18 |
| F2 |
|
Freelock Link(No wings) | S20C | 10t*ø8.1*18 |
| U1 |
|
ㄷ(Small) | S20C | 3.2t*ø8*7 |
| U2 |
|
ㄷ(Large) | S20C | 3.2t*ø8*11.5 |

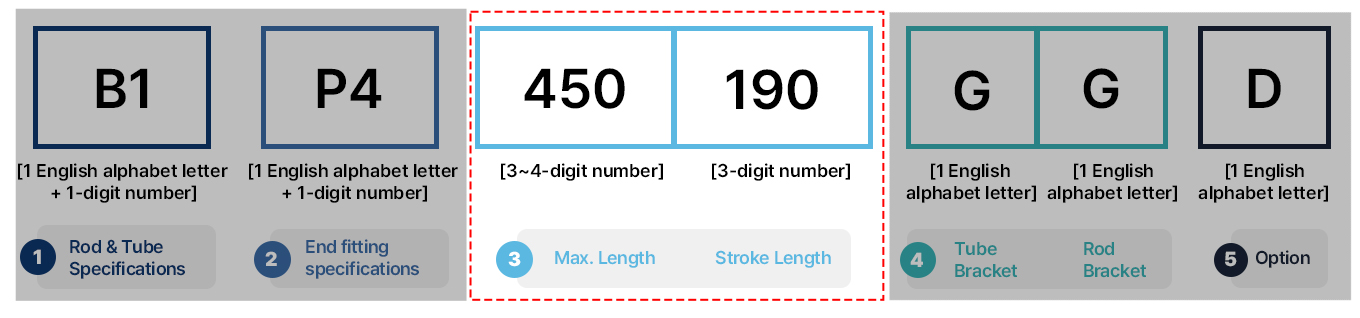

It’s a combination of [Maximum length + stroke] (unit mm).

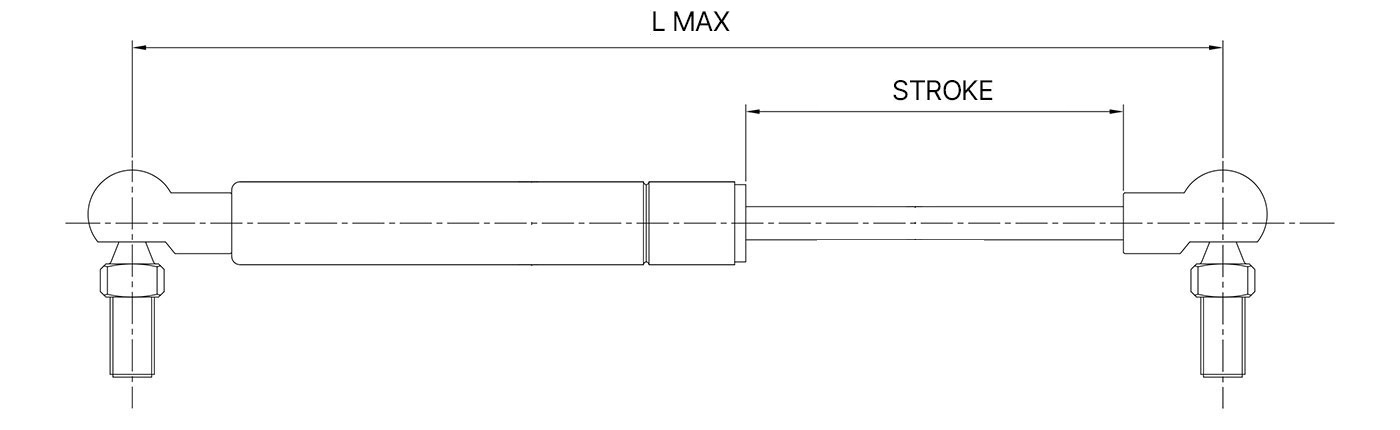

What is maximum length?
Assuming that there are hole-type end fittings at both ends when the gas spring is extended to the maximum, it is the length of the gap between the two-hole centers.

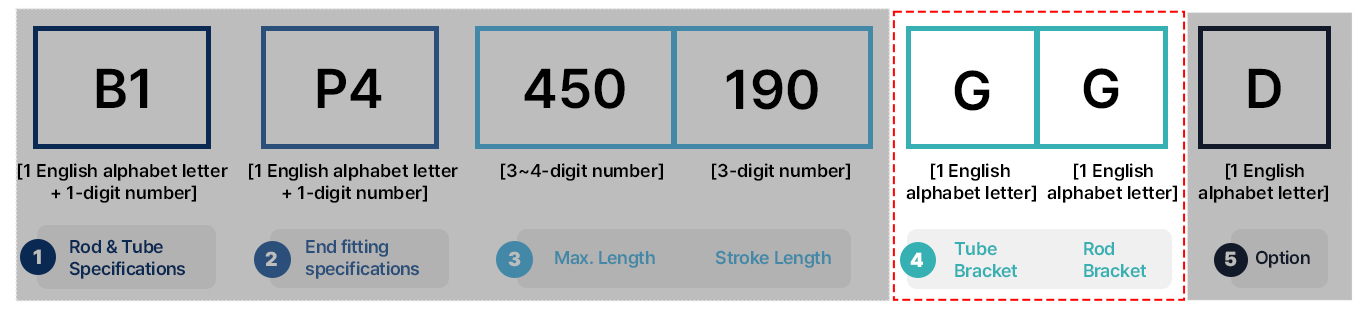

Two uppercase letters of English Alphabet representa brackets code.
If a product does not have a bracket, there is no code attached to this part.
| Code No. | Photo | Bracket | Material | Thread |
|---|---|---|---|---|
| A |
|
Bracket | SPCC | Spherical R-1 for furniture |
| B |
|
Bracket | SPCC | Spherical R-2 for furniture |
| C |
|
Bracket | SPCC | New model A for furniture |
| D |
|
Bracket | SPCC | New model A-1 for furniture |
| E |
|
Bracket | SPCC | New model B for furniture |
| F |
|
Bracket | SPCC | New model B-1 for furniture |
| H |
|
Bracket | SPCC | New model A for furniture |
| I |
|
Bracket | SPCC | New model A-1 for furniture |
| G |
|
Ball Stud | S10C | ø10*M8*1.25 |
| J |
|
Ball Stud | SUS316L | ø10*M8*1.25 |
| K |
|
Ball Stud | S10C | ø13*M8*1.25 |
| L |
|
Ball Stud | S10C | ø13*M10*1.5 |
| M |
|
Ball Stud | SUS316L | ø13*M8*1.25 |
| N |
|
Ball Stud | S10C | ø16*M10*1.5 |
| Code No. | Type |
|---|---|
| Z | Traction |
| SF | Safety lock |
| D | Damper spring |
