Product

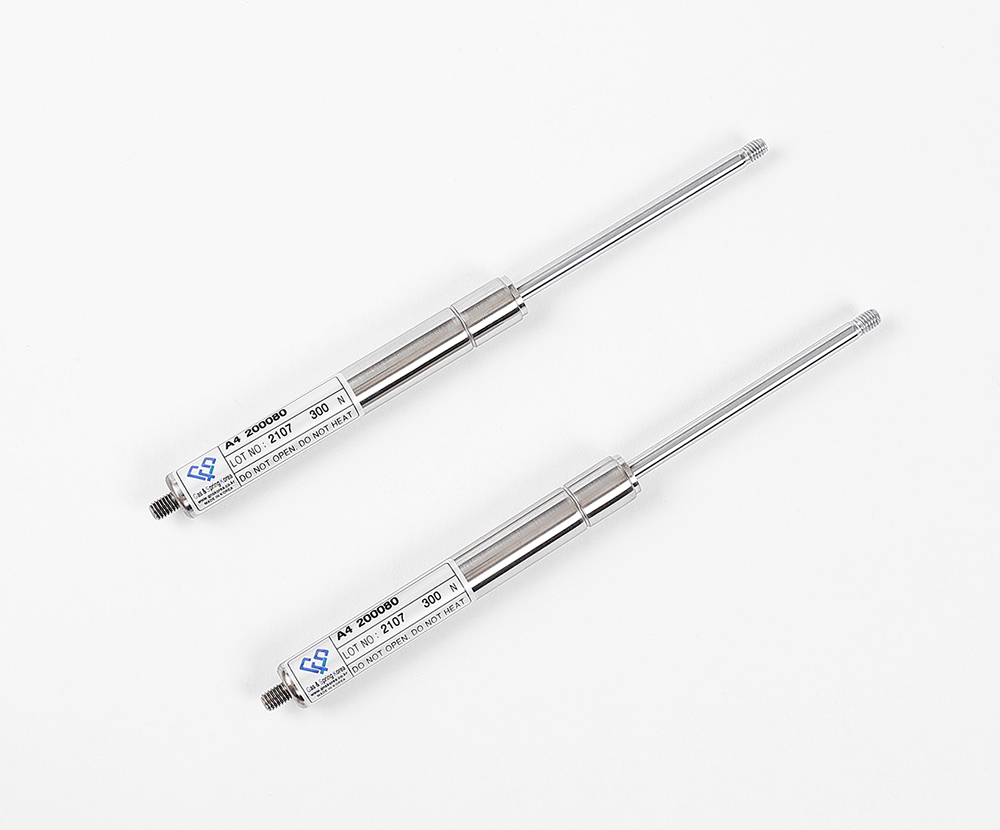

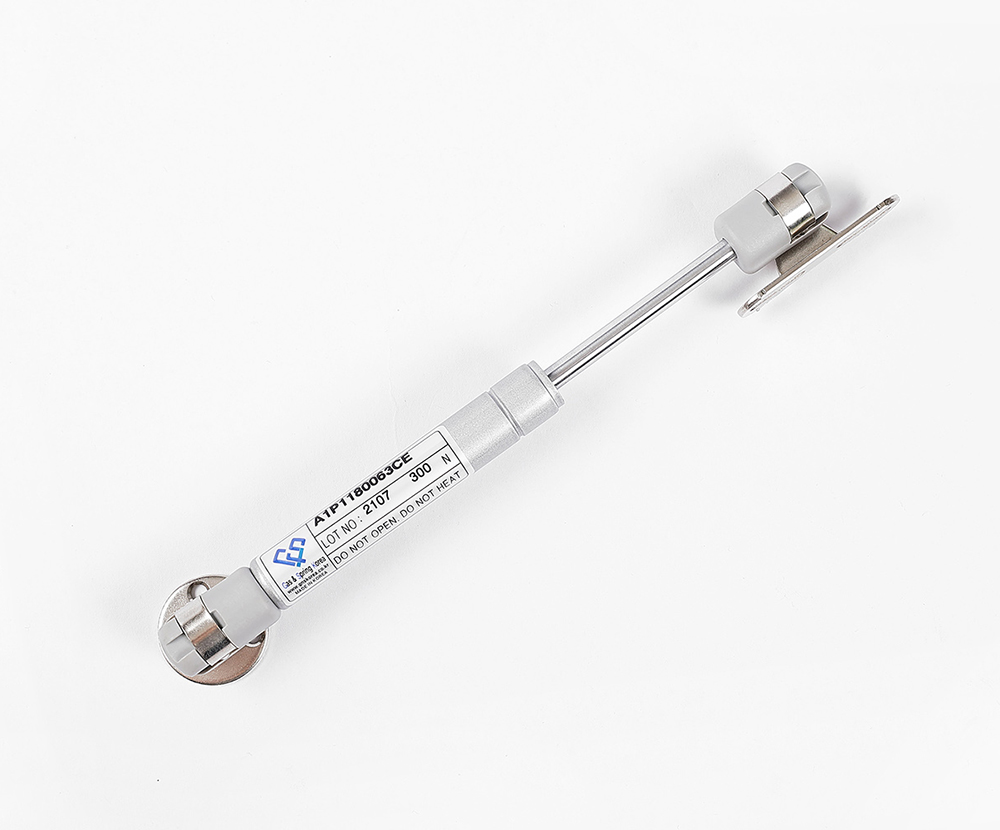

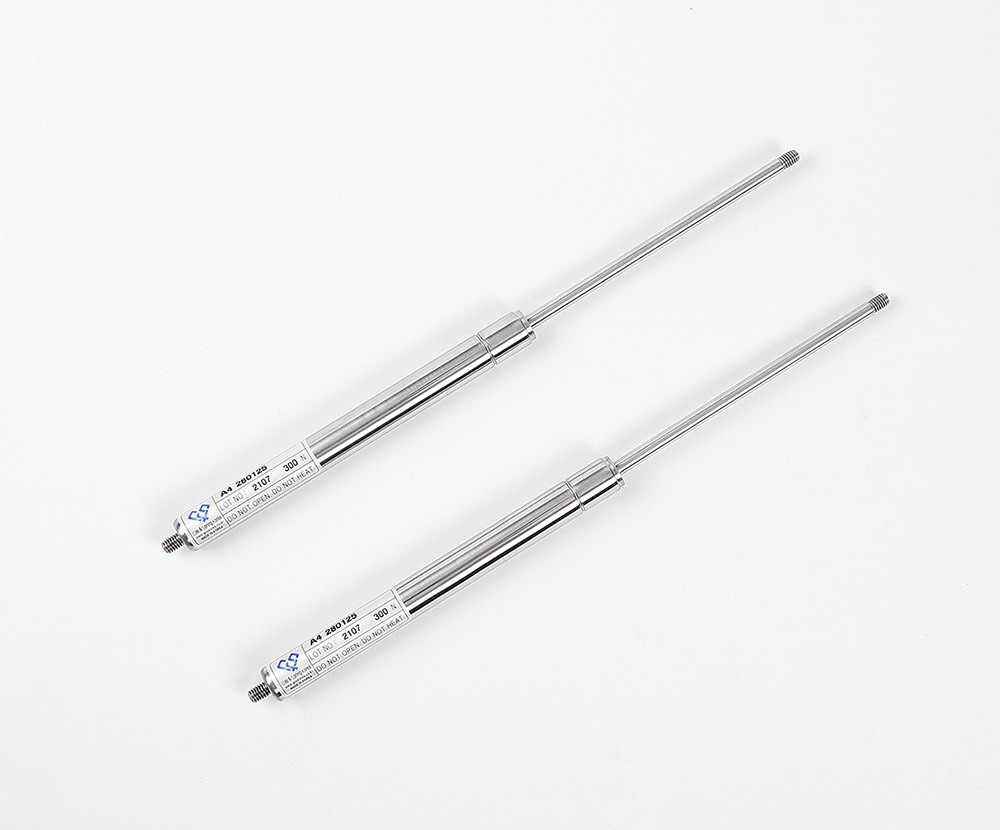

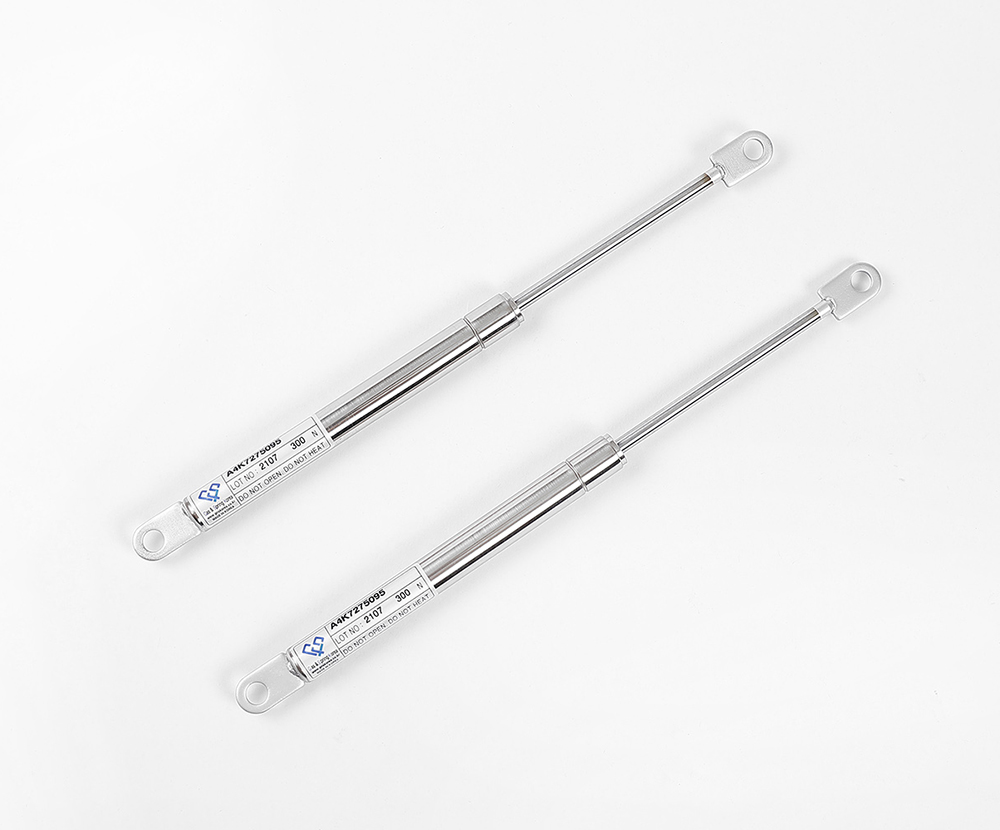

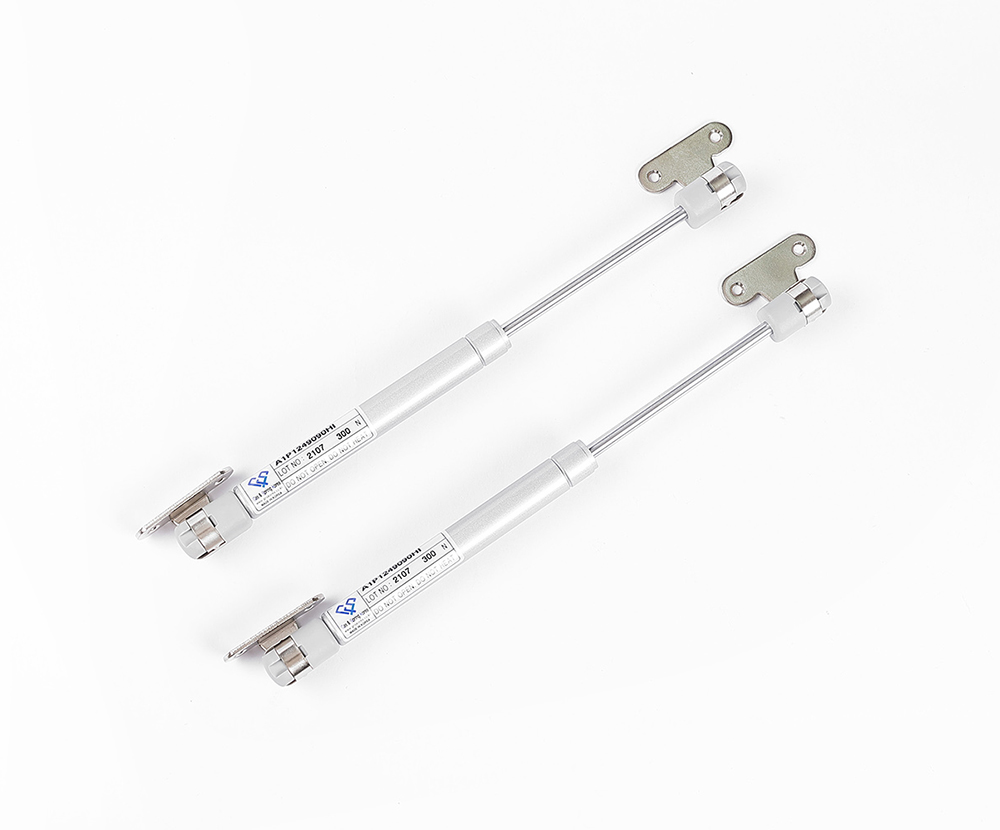

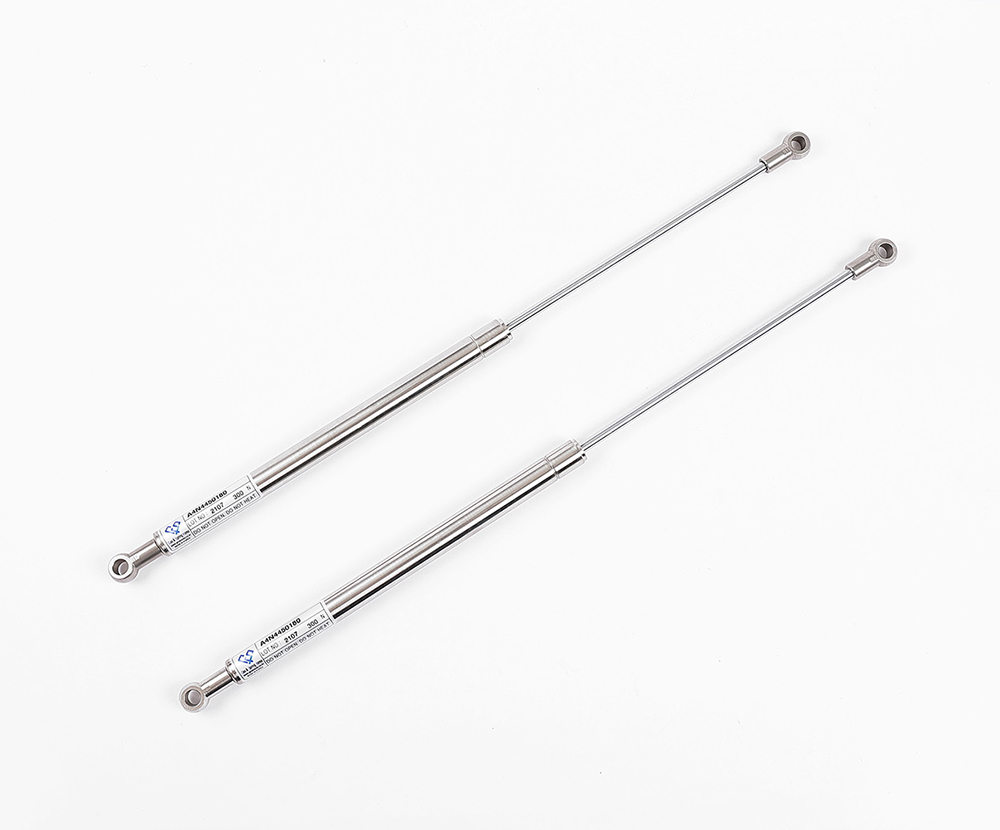

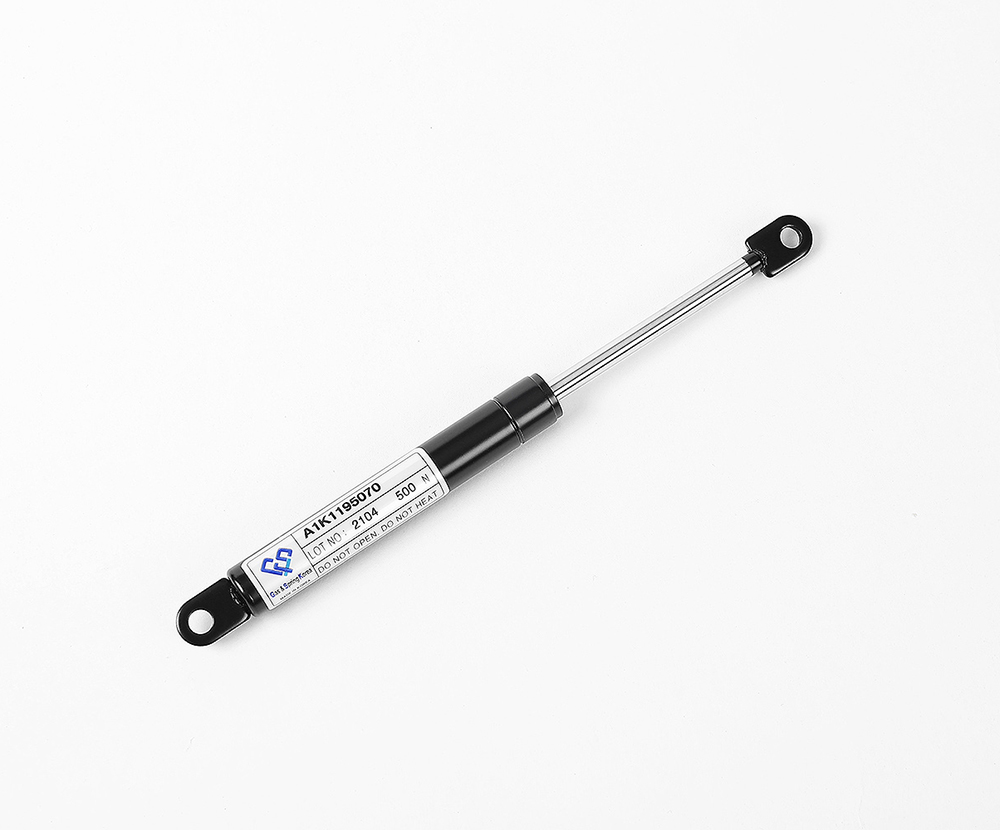

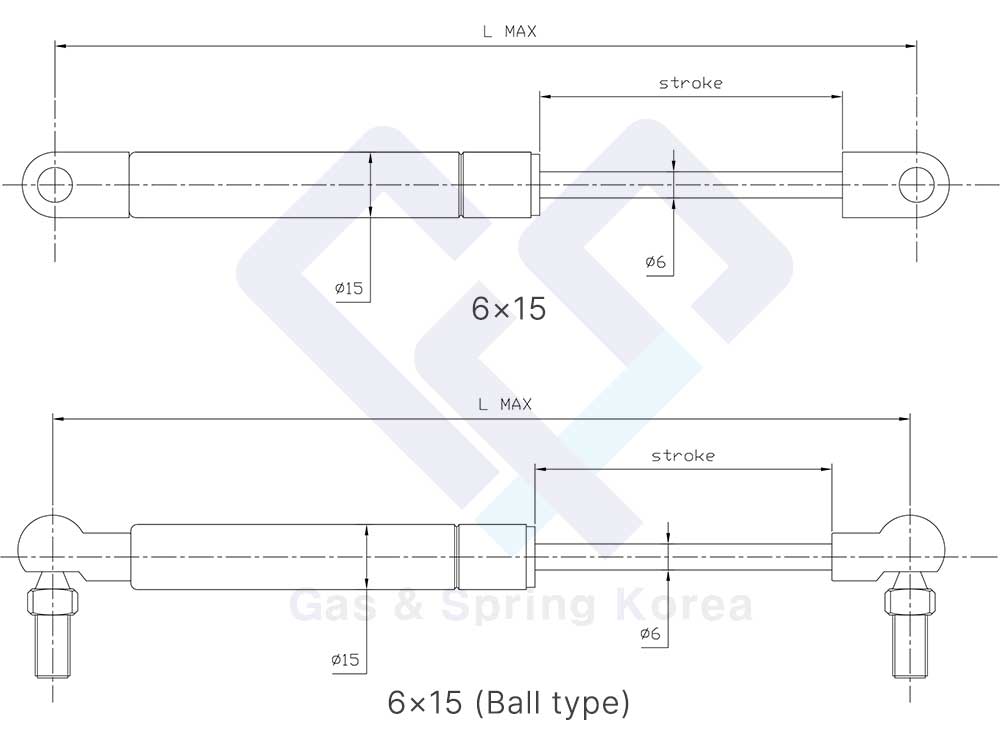

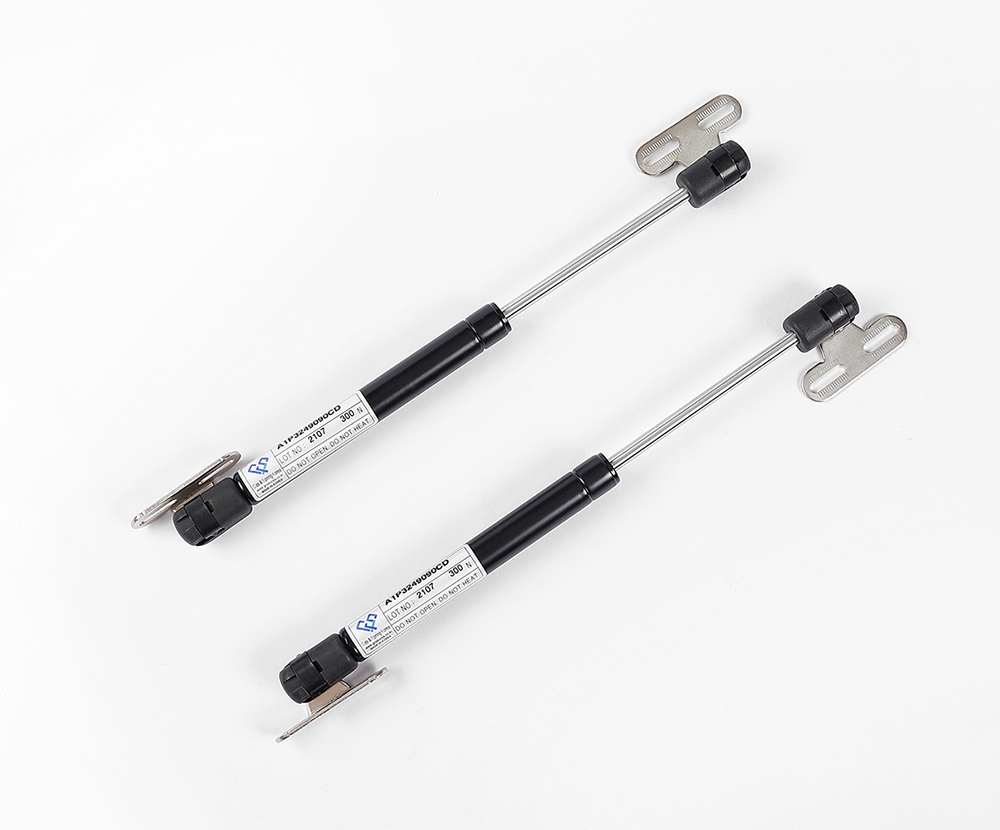

GUIDE CODE A
Rod dia.ø6 x Tube dia.ø15

GUIDE CODE A

  • Force(N)20 ~ 300
  • Max. Length (mm)100 ~ 500
  • Stroke (mm)20 ~ 200
  • Material
  • Rod Tube (Cylinder)
    code A1 S20-C(Chrome) STKM11A
    code A2 S20-C(Black) STKM11A
    code A3 SUS316L STKM11A
    code A4 SUS316L SUS316L

    * Other specifications can be discussed with our engineer before manufacturing.

Recommended option : End fitting & Bracket

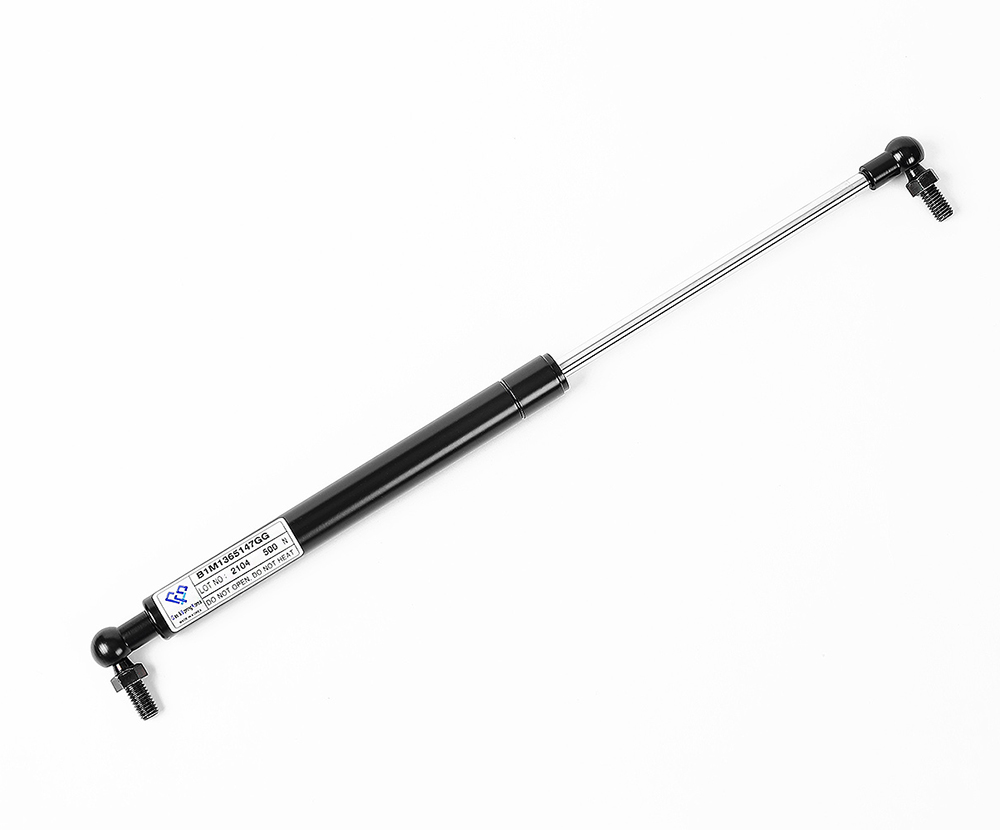

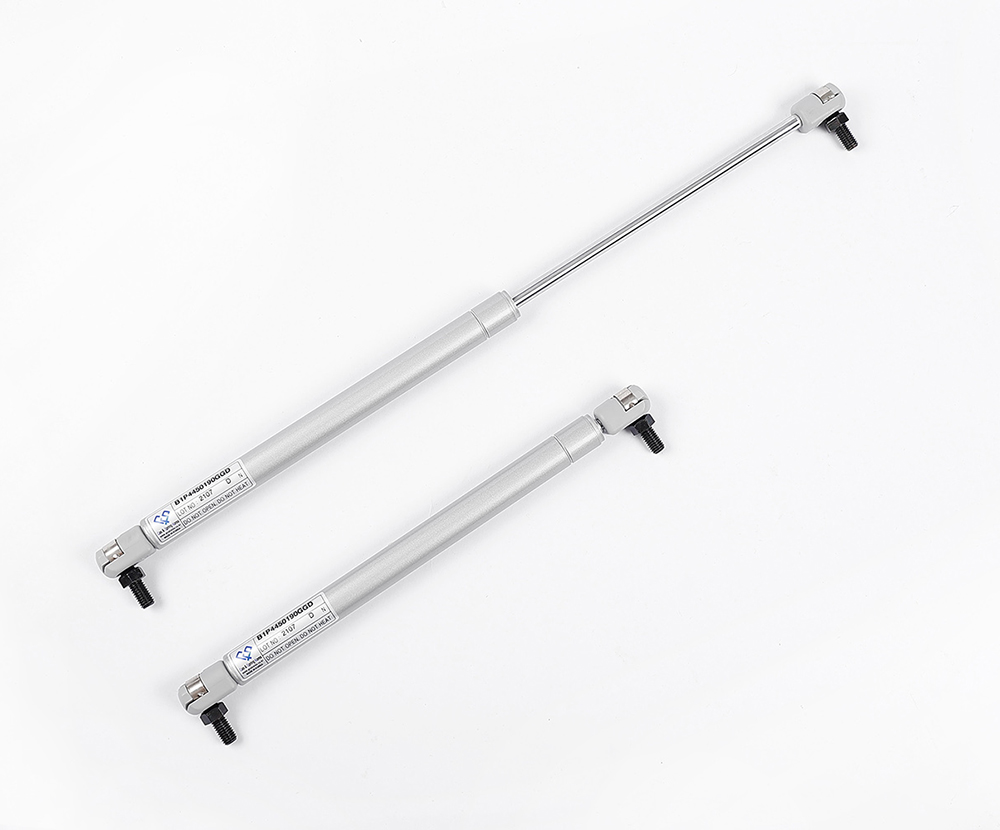

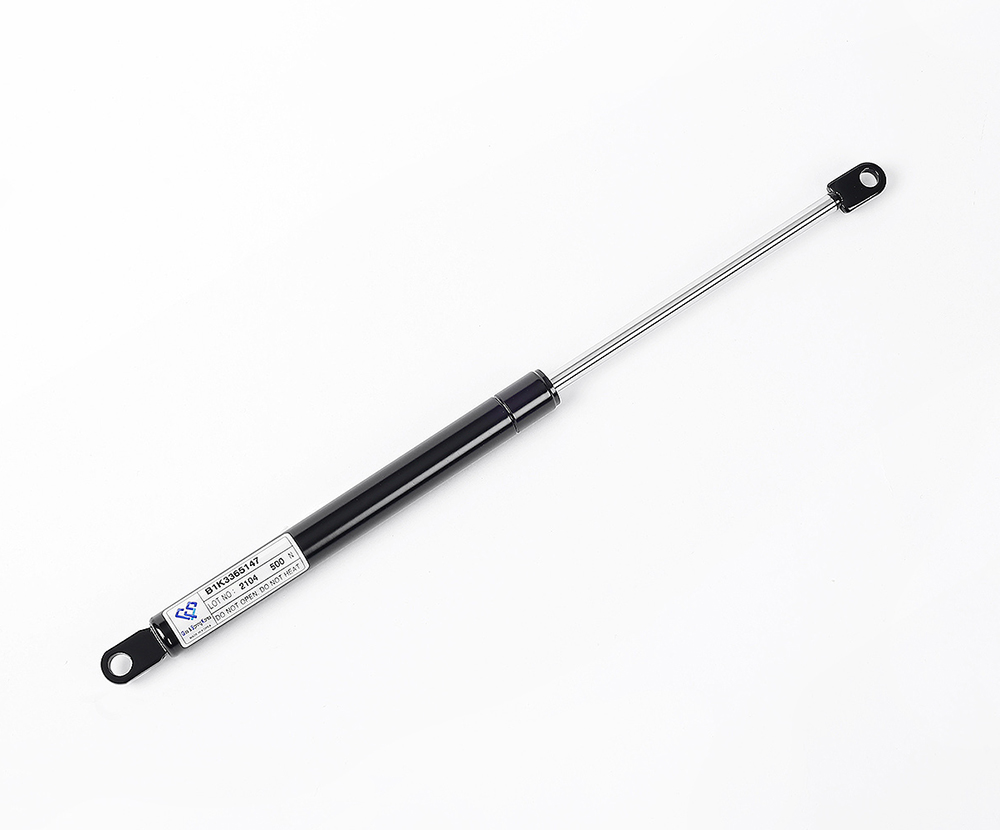

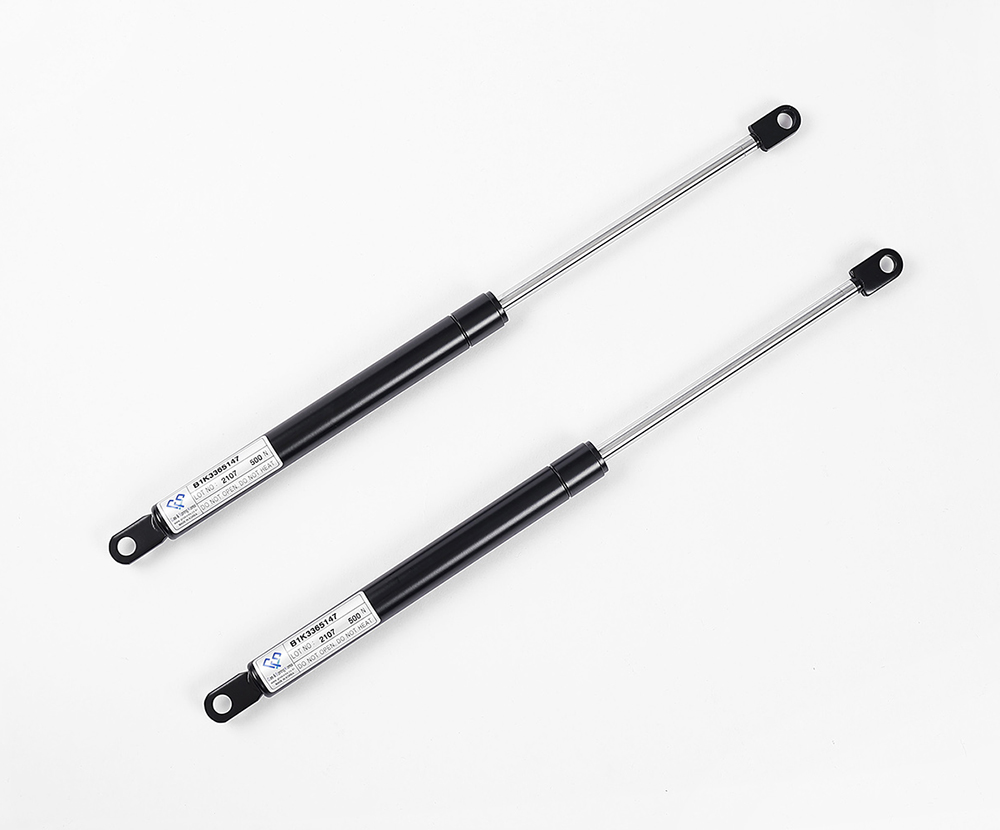

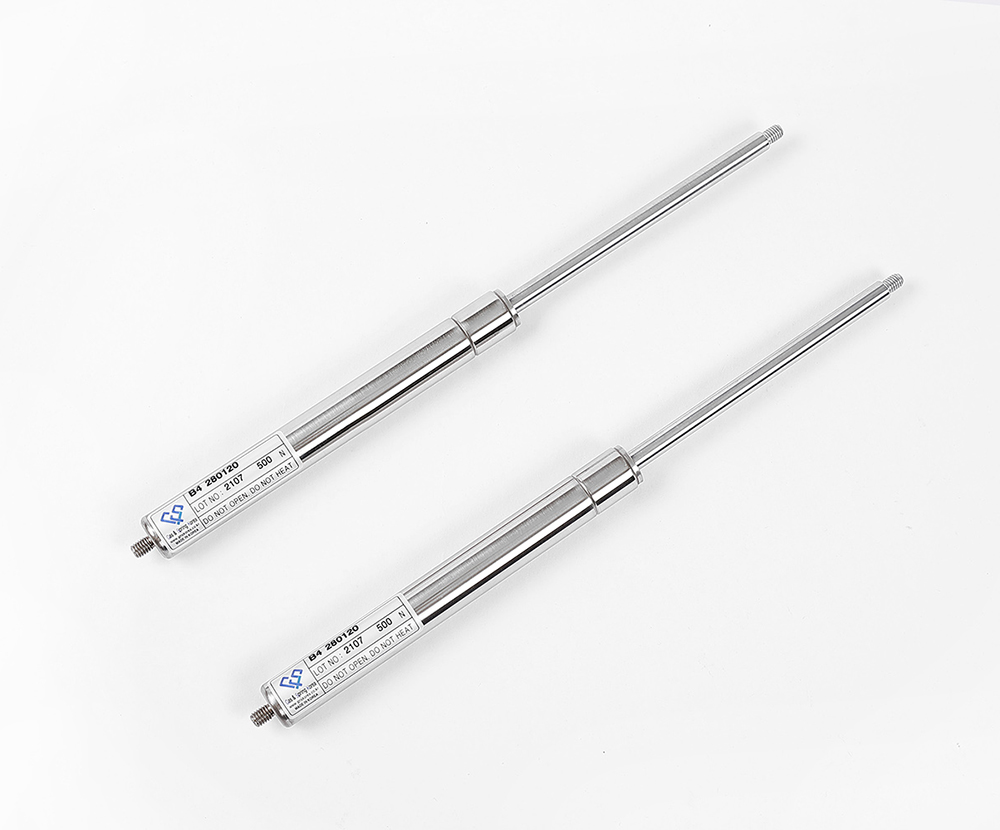

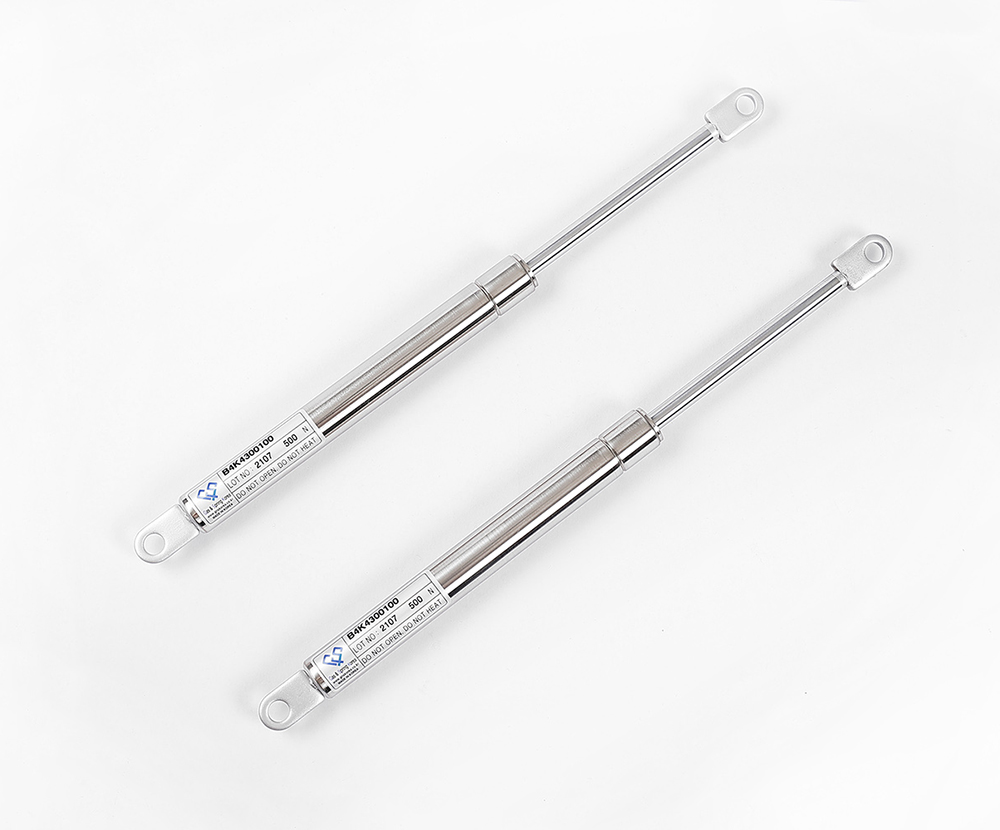

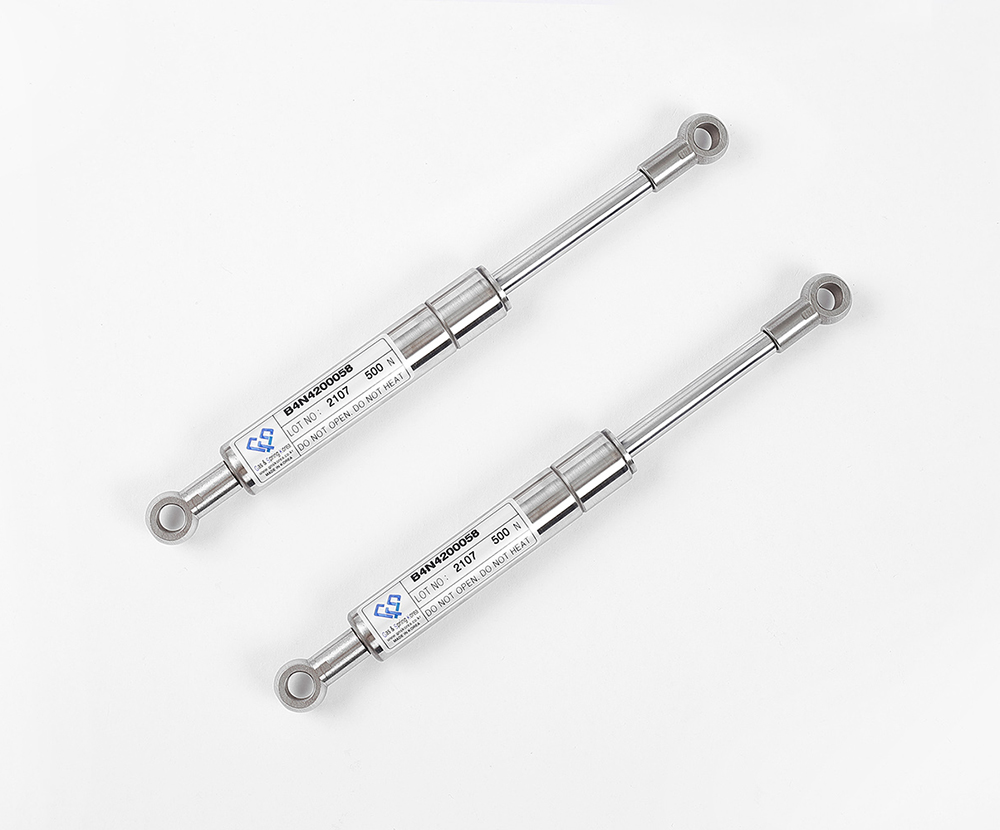

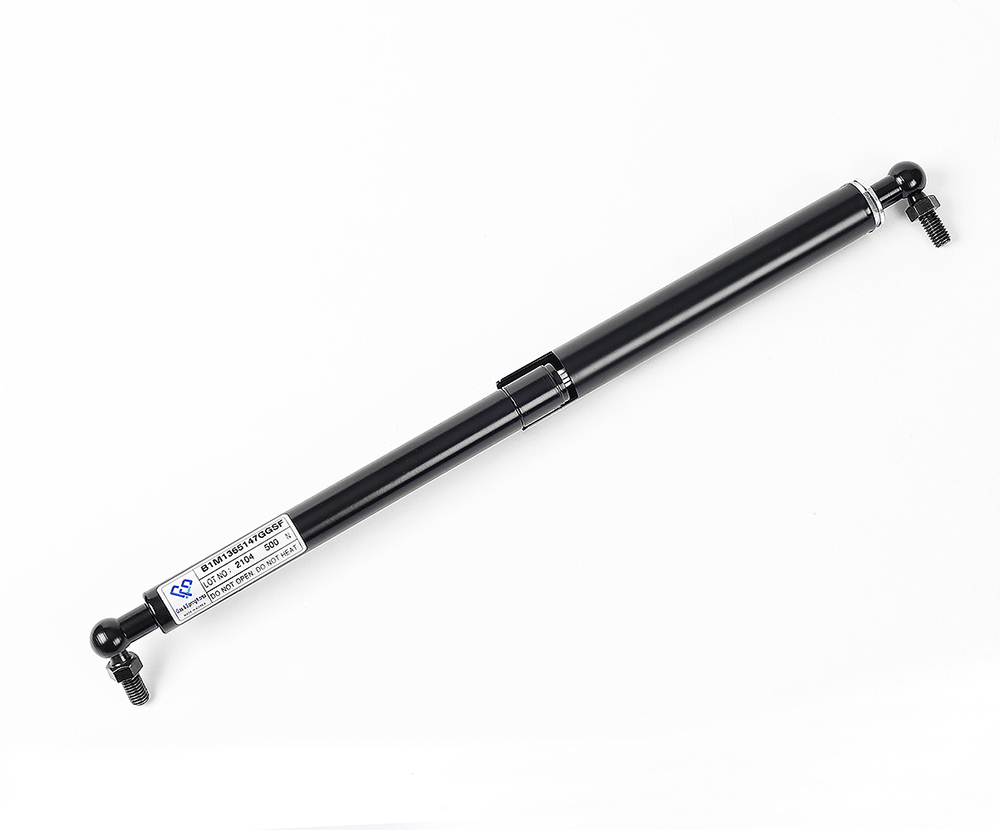

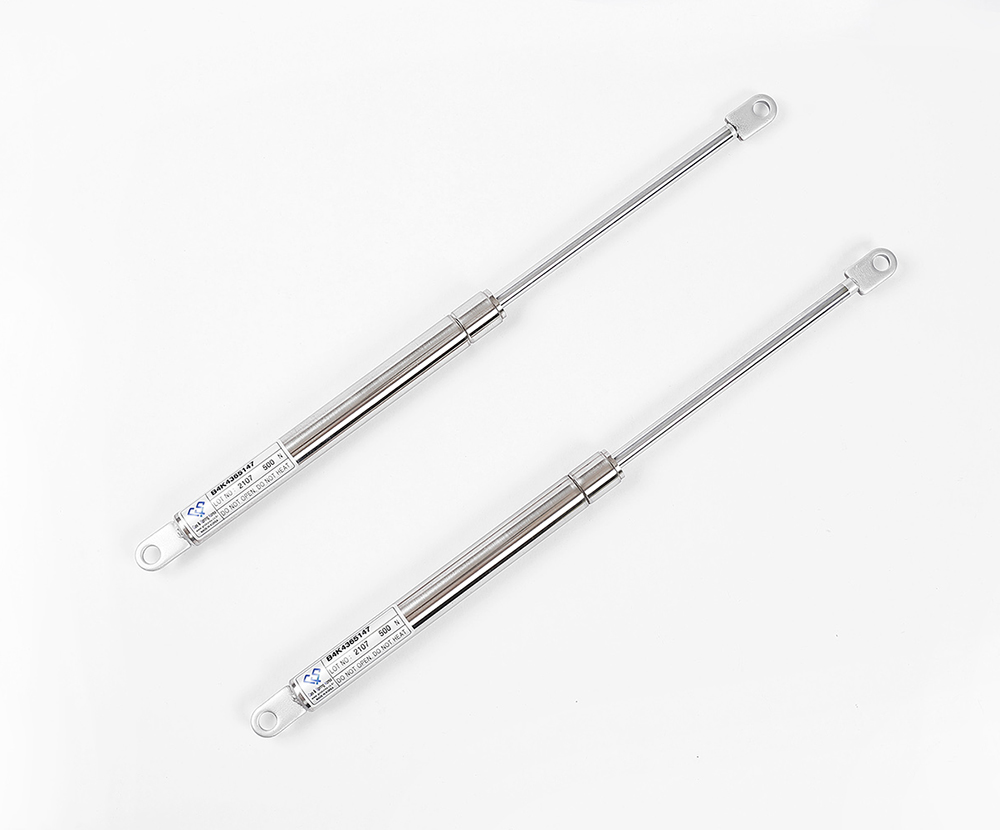

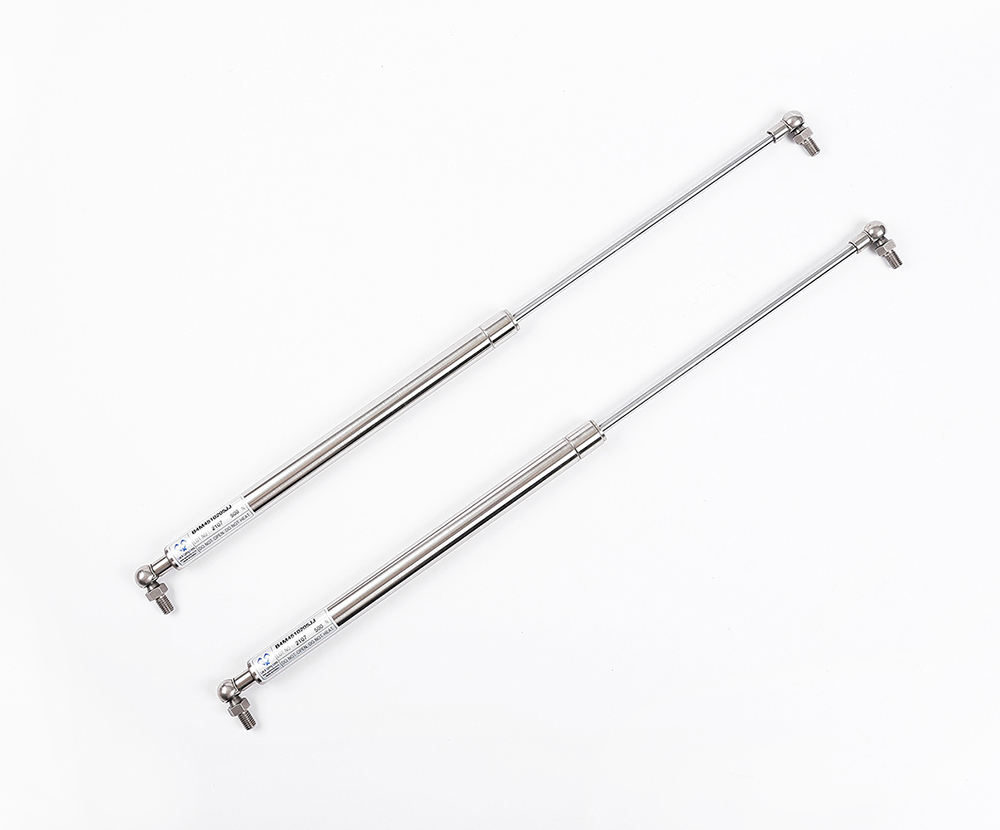

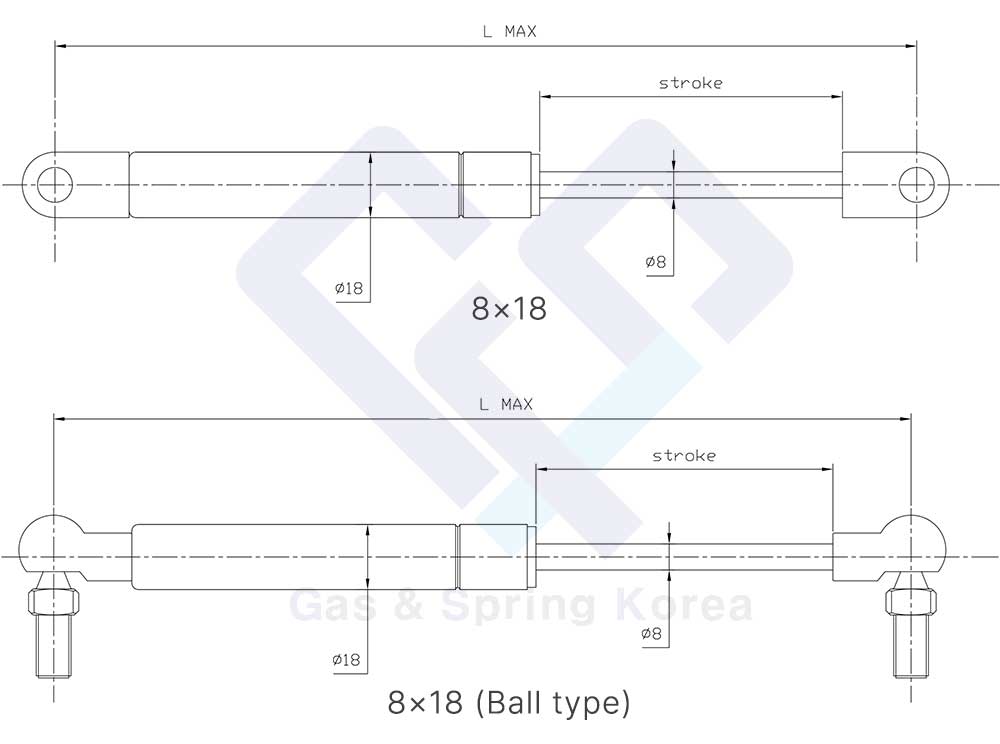

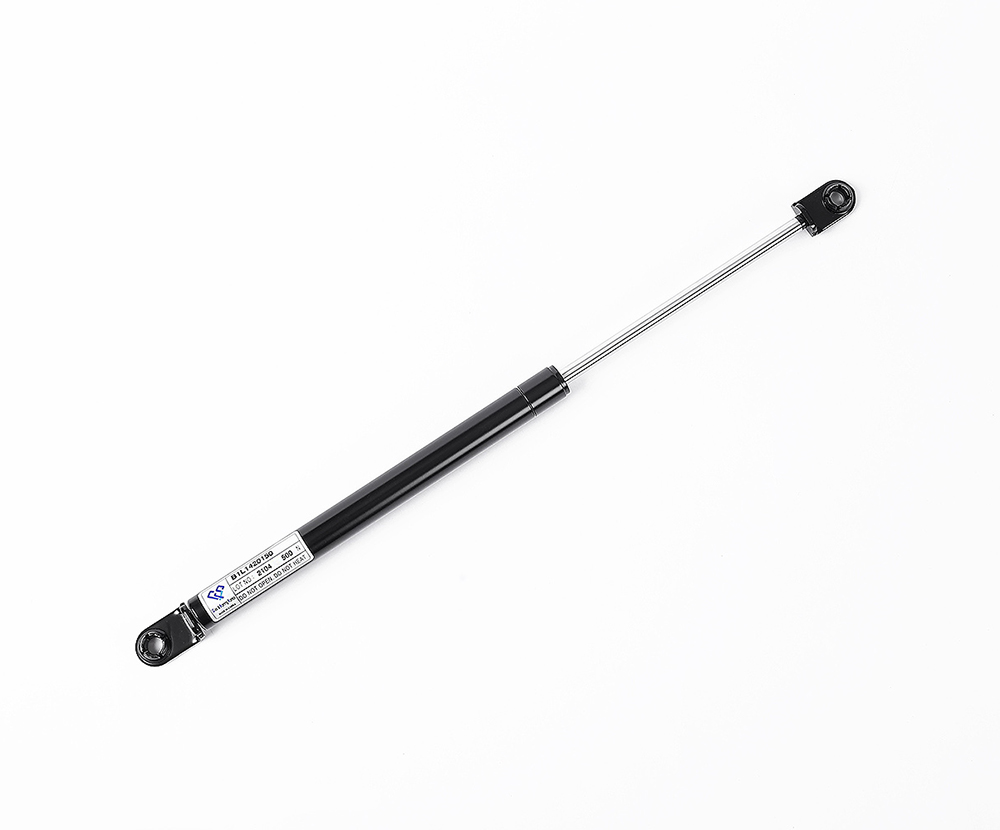

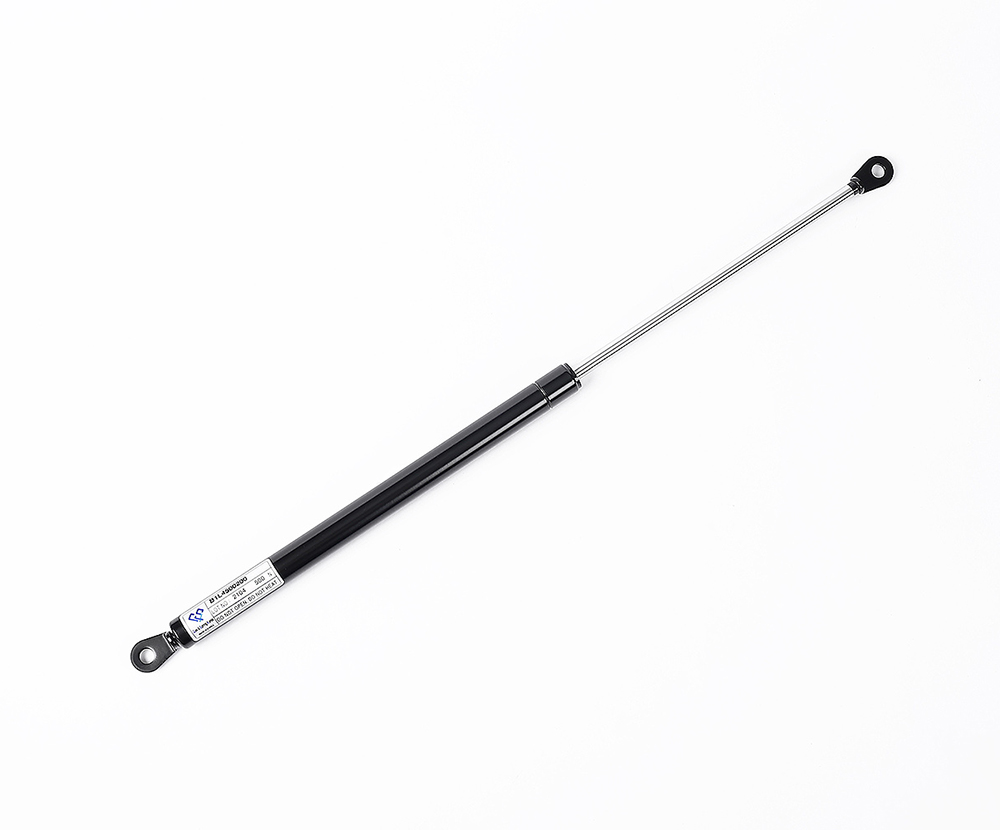

GUIDE CODE B
Rod dia.ø8 x Tube dia.ø18

GUIDE CODE B

  • Force(N)50 ~ 500
  • Max. Length (mm)100 ~ 1000
  • Stroke (mm)20 ~ 450
  • Material
  • Rod Tube (Cylinder)
    code B1 S20-C(Chrome) STKM11A
    code B2 S20-C(Black) STKM11A
    code B3 SUS316L STKM11A
    code B4 SUS316L SUS316L

    * Other specifications can be discussed with our engineer before manufacturing.

Recommended option : End fitting & Bracket

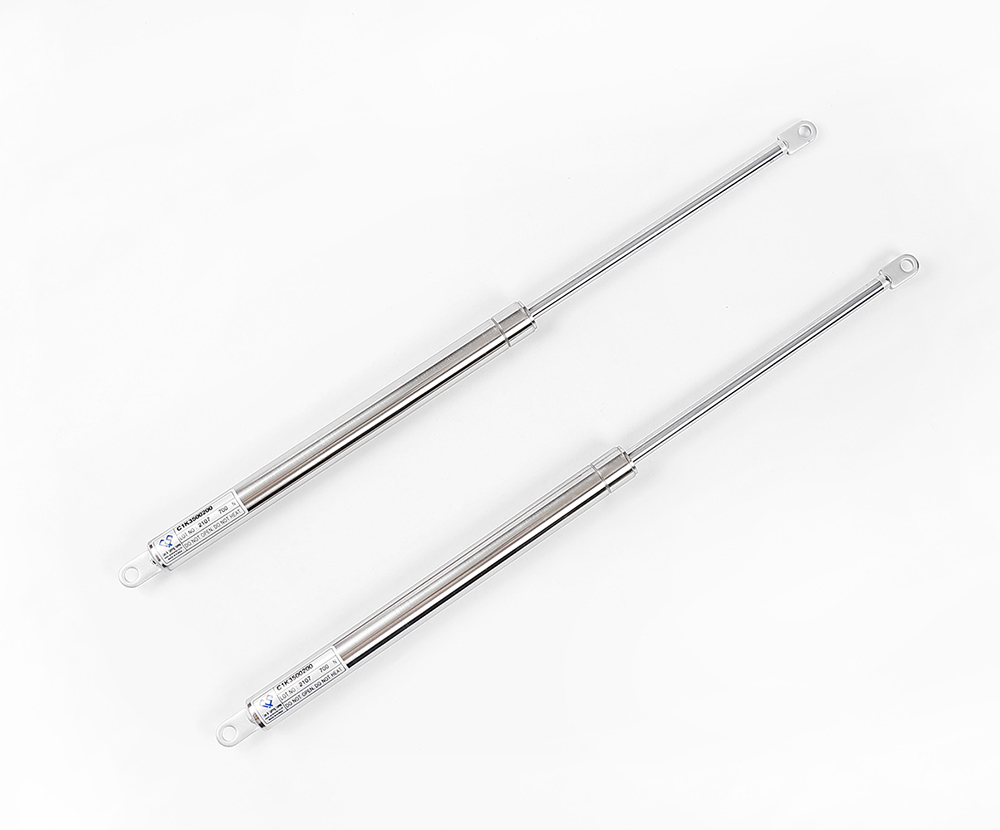

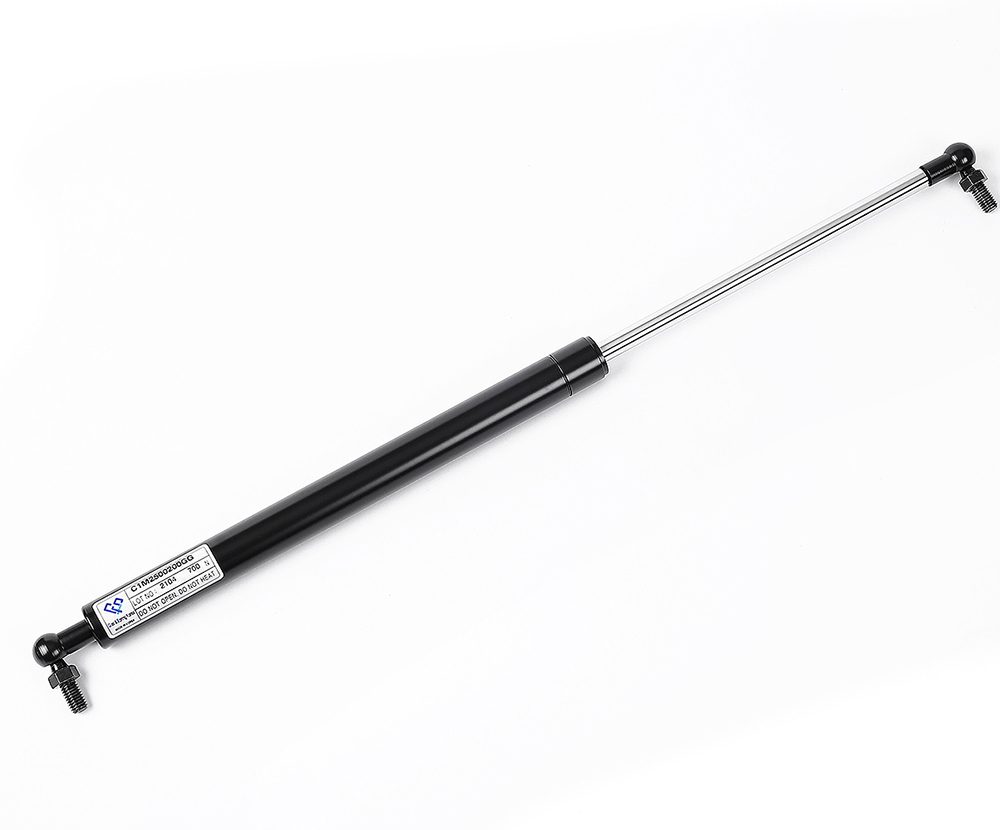

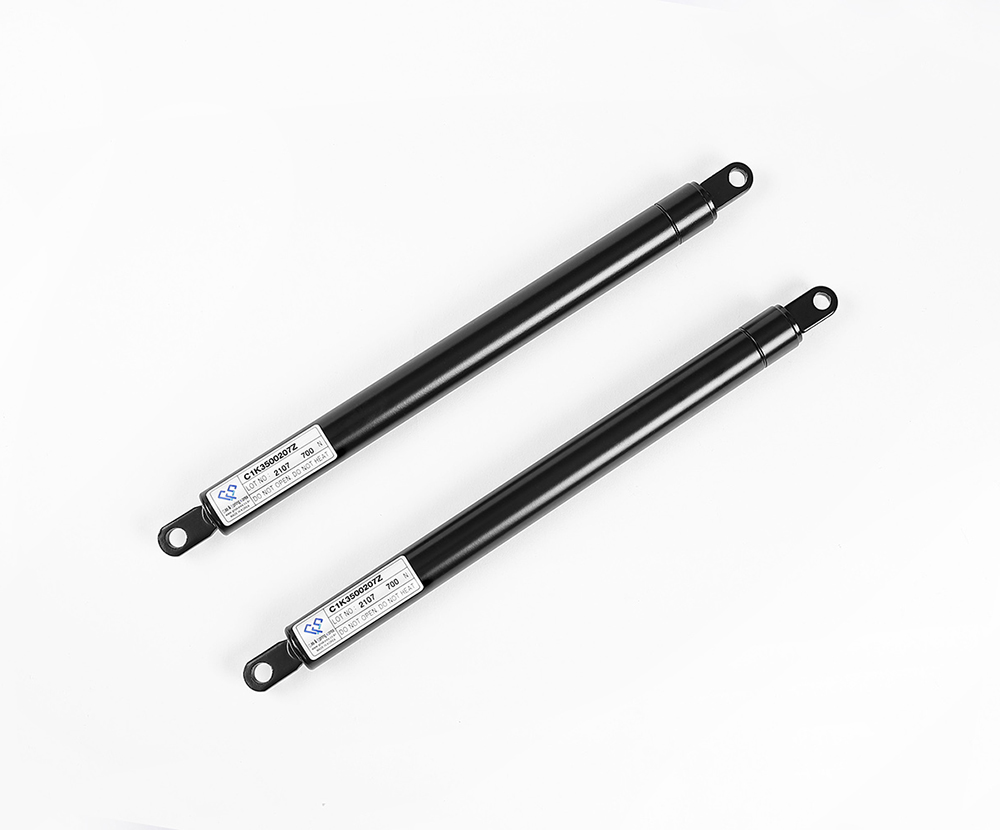

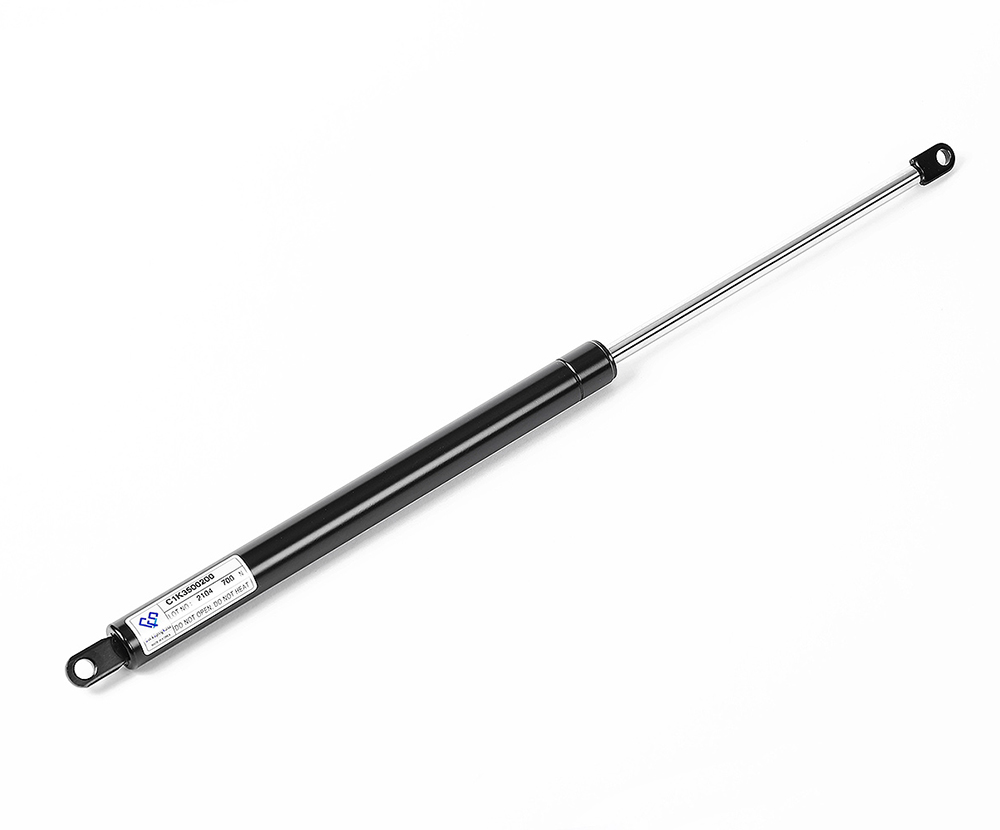

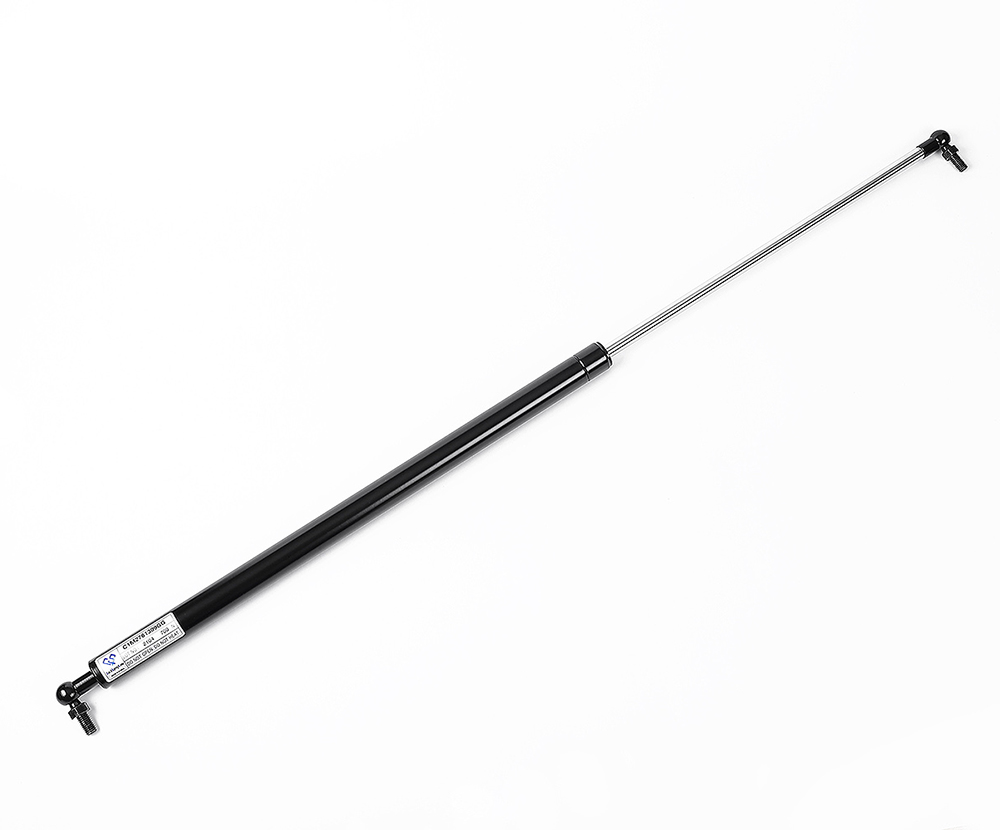

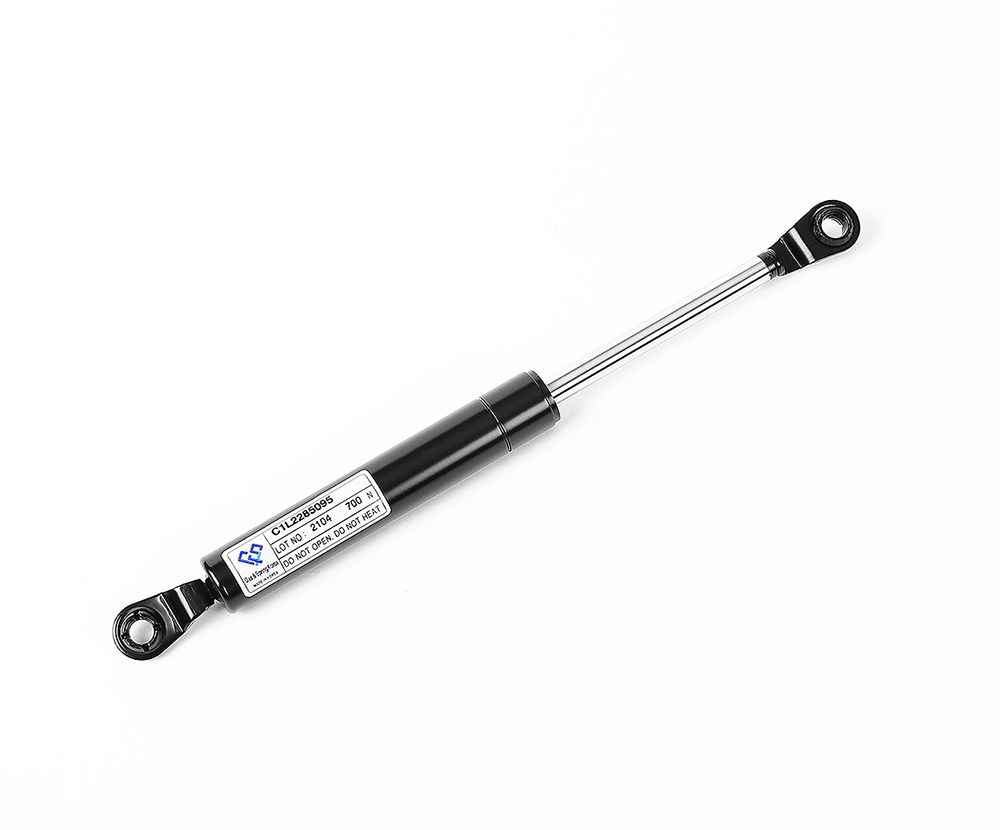

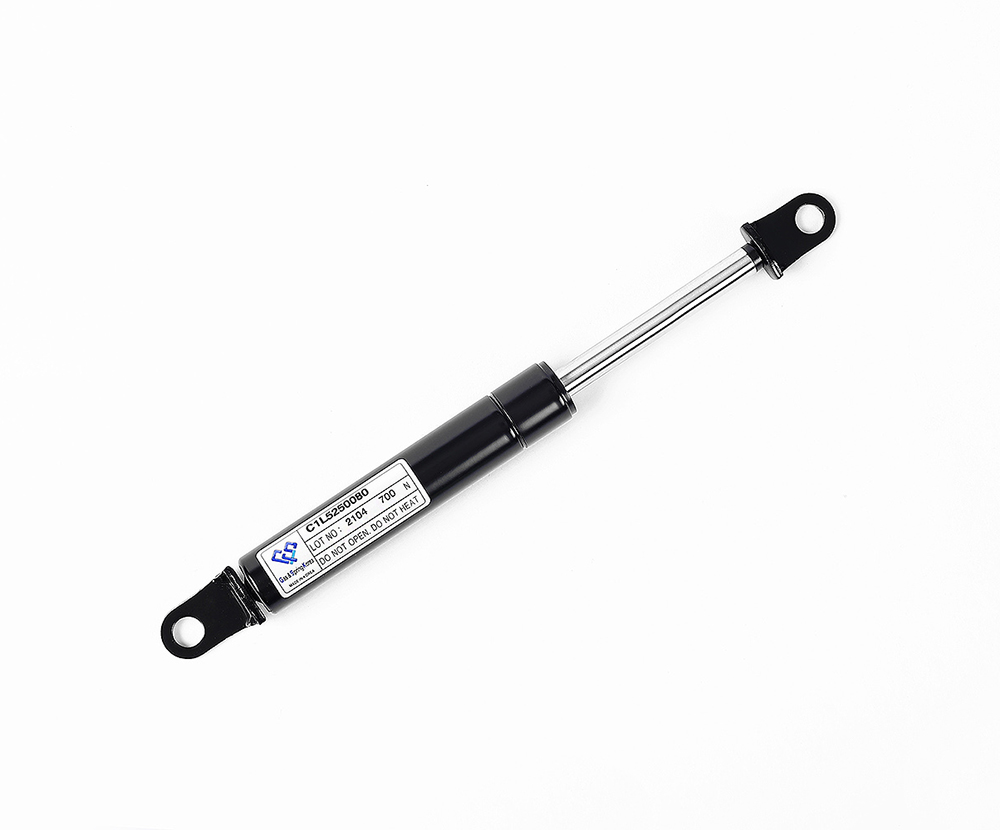

GUIDE CODE C

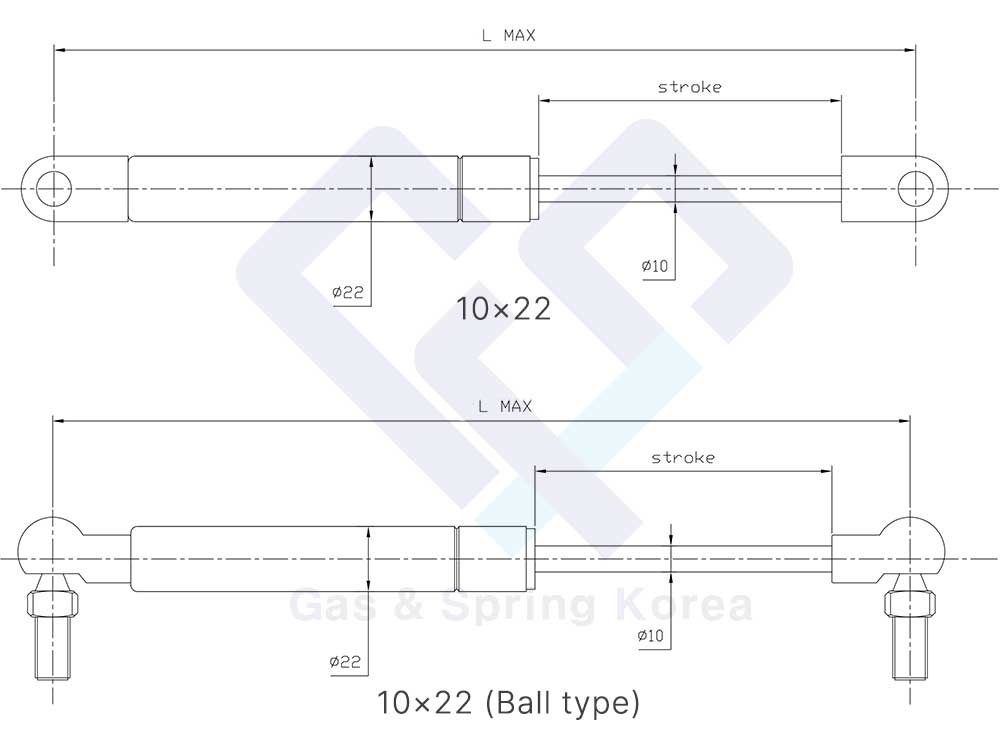

Rod dia.ø10 x Tube dia.ø22

GUIDE CODE C

  • Force(N)50 ~ 700
  • Max. Length (mm)100 ~ 1000
  • Stroke (mm)20 ~ 450
  • Material
  • Rod Tube (Cylinder)
    code C1 S20-C(Chrome) STKM11A
    code C2 S20-C(Black) STKM11A
    code C3 SUS316L STKM11A
    code C4 SUS316L SUS316L

    * Other specifications can be discussed with our engineer before manufacturing.

Recommended option : End fitting & Bracket

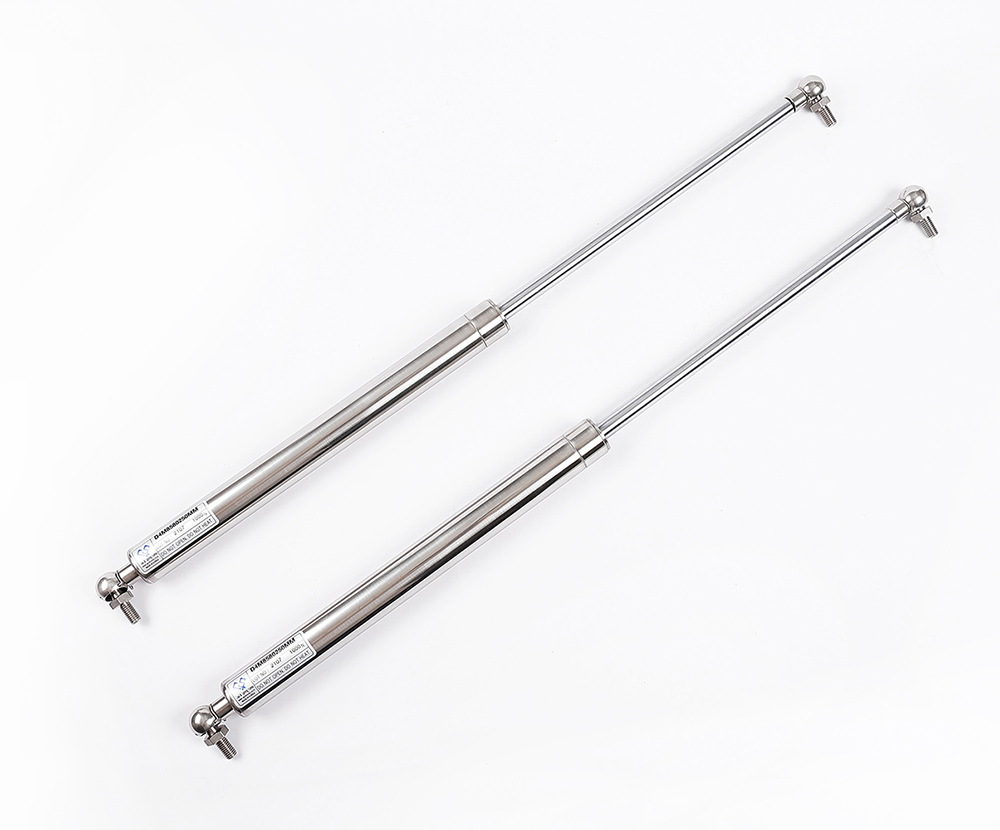

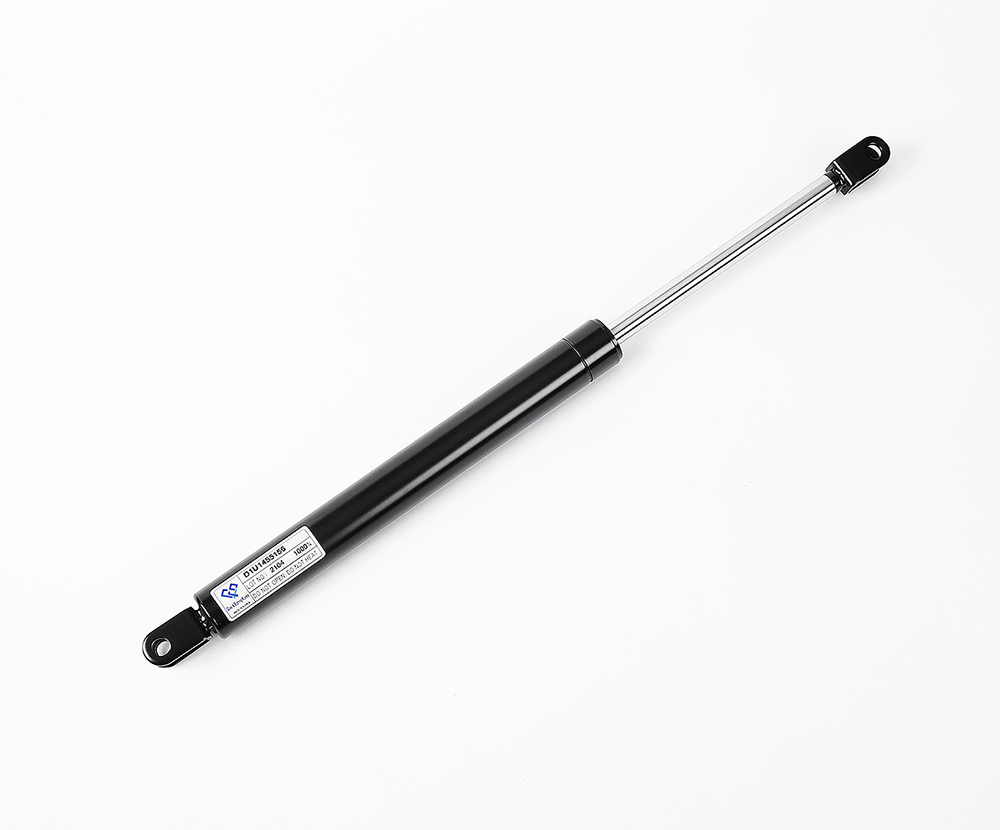

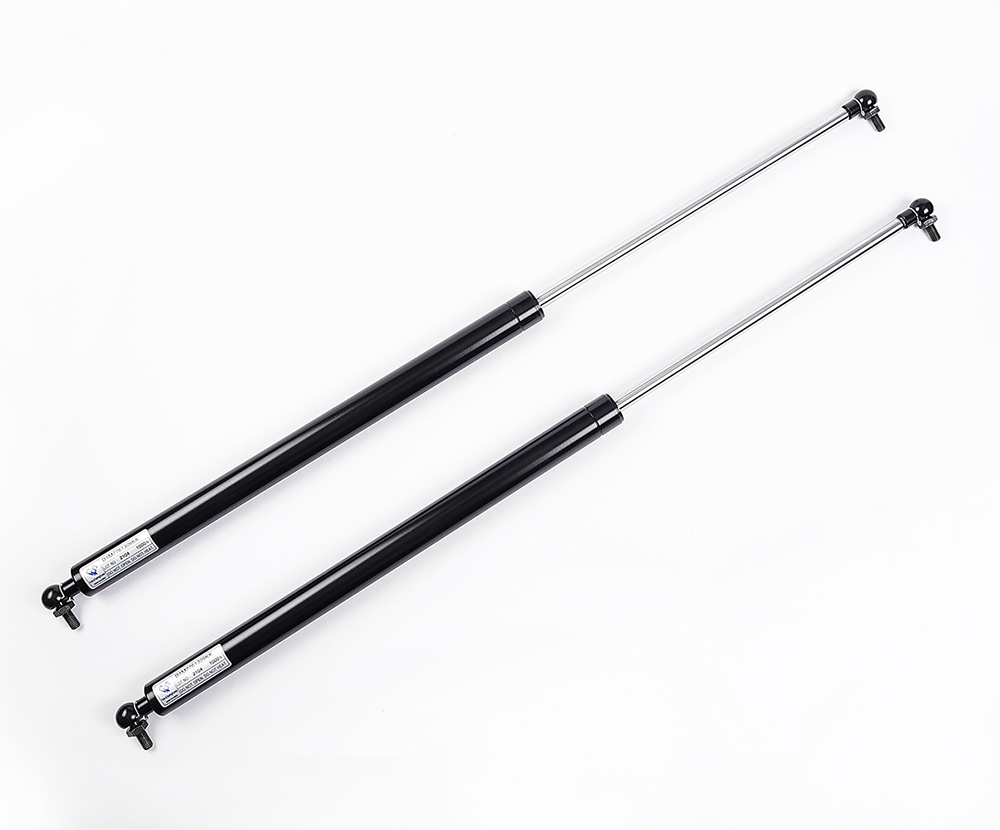

GUIDE CODE D

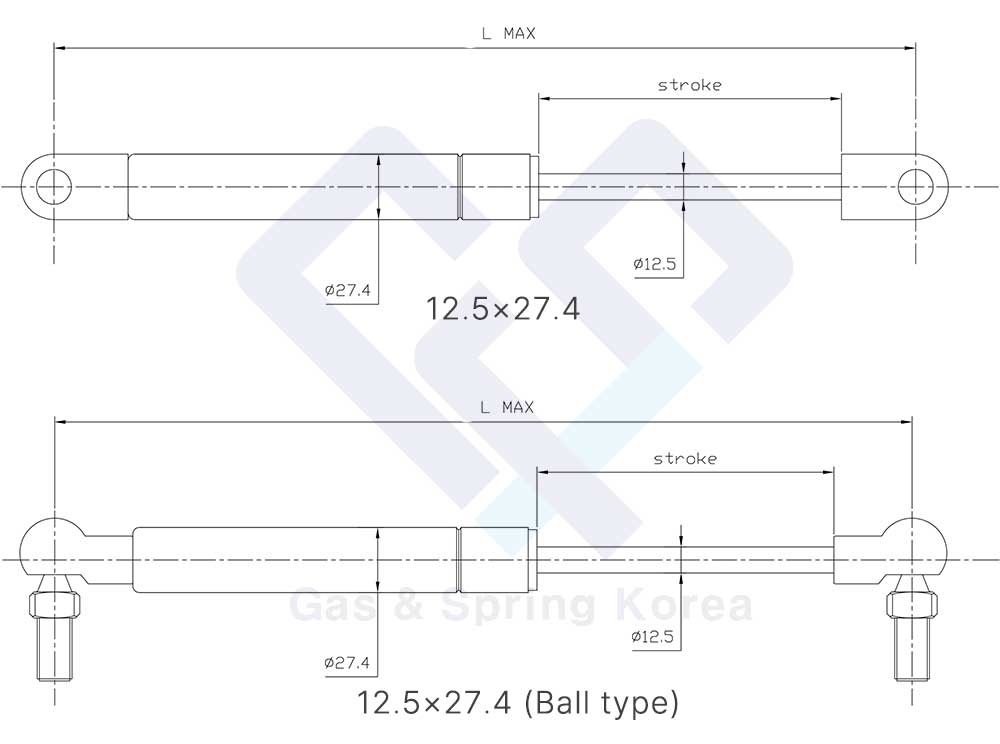

Rod dia.ø12.5 x Tube dia.ø27.4

GUIDE CODE D

  • Force(N)200 ~ 2000
  • Max. Length (mm)100 ~ 1500
  • Stroke (mm)20 ~ 700
  • Material
  • Rod Tube (Cylinder)
    code D1 S20-C(Chrome) STKM11A
    code D2 S20-C(Black) STKM11A
    code D3 SUS316L STKM11A
    code D4 SUS316L SUS316L

    * Other specifications can be discussed with our engineer before manufacturing.

Recommended option : End fitting & Bracket

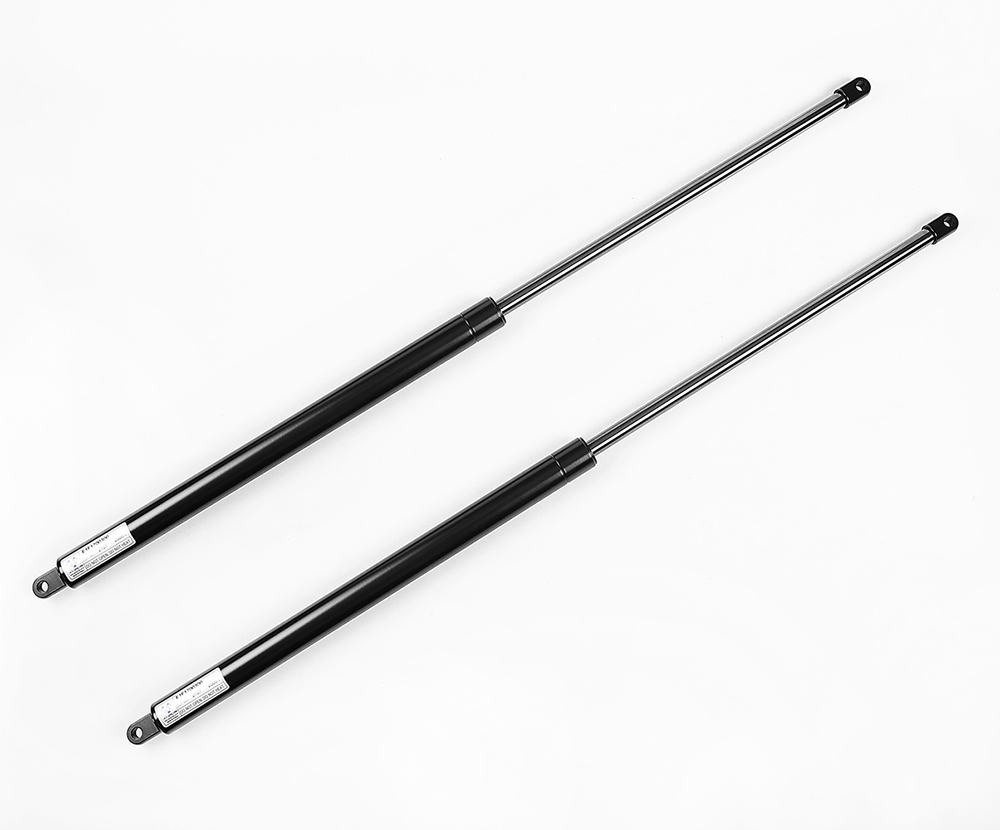

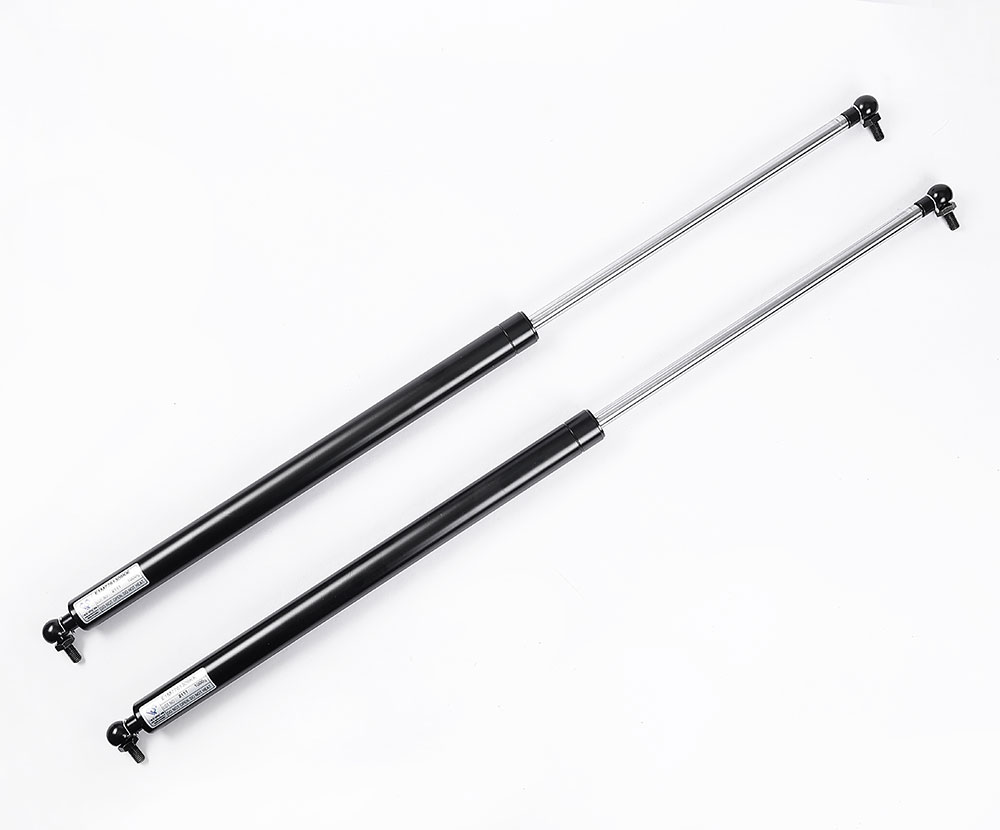

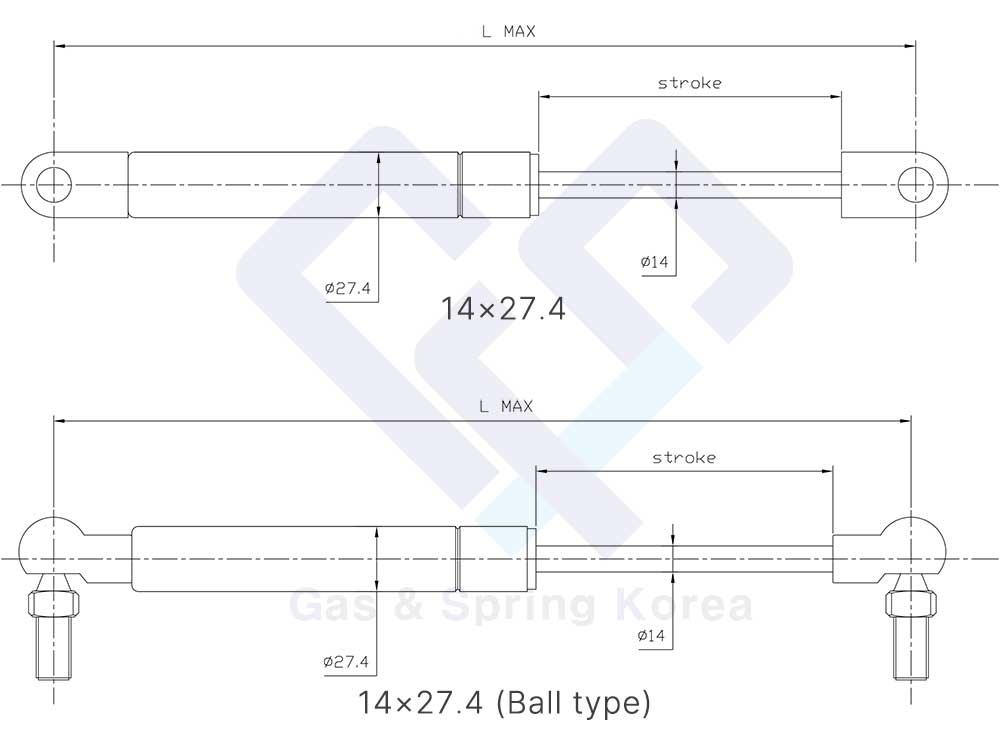

GUIDE CODE E
Rod dia.ø14 x Tube dia.ø27.4

GUIDE CODE E

  • Force(N)200 ~ 2000
  • Max. Length (mm)100 ~ 1500
  • Stroke (mm)20 ~ 700
  • Material
  • Rod Tube (Cylinder)
    code E1 S20-C(Chrome) STKM11A
    code E2 S20-C(Black) STKM11A
    code E3 SUS316L STKM11A
    code E4 SUS316L SUS316L

    * Other specifications can be discussed with our engineer before manufacturing.

Recommended option : End fitting & Bracket
